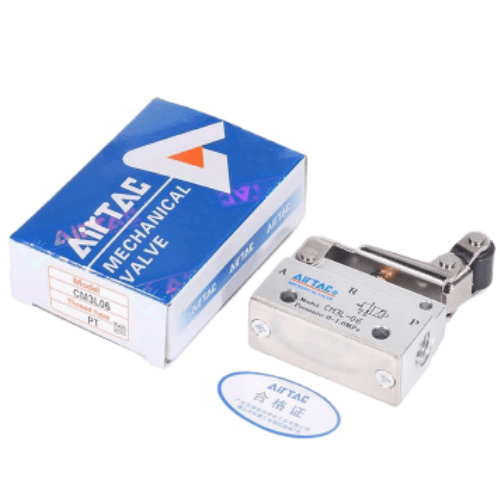

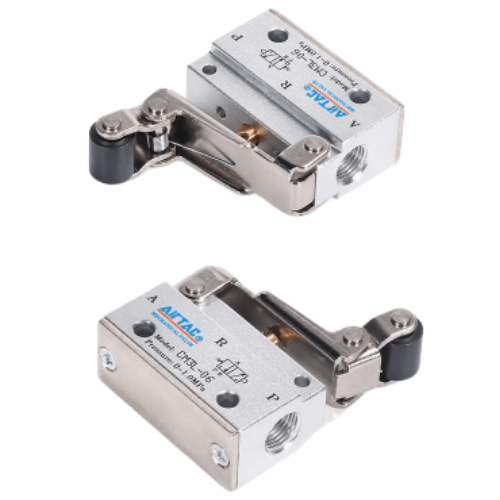

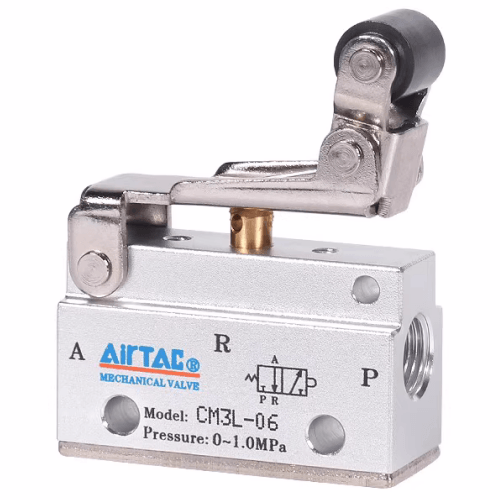

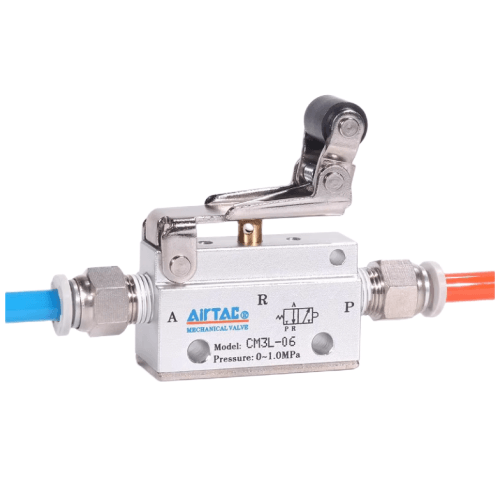

Airtac CM3L One-way Roller Lever Type Mechanical Valve CM3L05
2. The CM3PF, CM3PM, CM3PMS, CM3PMX, CM3PL, CM3PP, CM3HS, CM3HD, and CM3Y series feature manual operation with diverse actuator configurations, optimized for varied operational conditions;
3. Poppet valve design ensures excellent sealing performance, positive directional control, and maintenance-free operation without lubrication;
4. Multi-position mounting capability simplifies installation flexibility;
5. CM3L, CM3V, CM3R, and CM3Y series employ metallic actuators for extended service life and consistent reliability in demanding environments;
6. CM3PMS and CM3PMX models incorporate metal protective guards to shield pushbuttons from accidental actuation and mechanical interference, ensuring secure operation.
Category: Mechanical Valves , Brand: AirTAC , Series: CM3L Unidirectional Roller Lever Mechanical Valve
AirTAC CM3L05 Single Direction Roller Lever Mechanical Valve Specifications
- Model: CM3L05
- Type: 3/2-way normally closed (mechanical actuation)
- Actuation method: Roller lever (spring return)
- Port size: PT1/8 (G1/8 optional)
- Operating pressure: 0.05–0.8 MPa
- Max flow rate: 350 L/min (ANR)
- Response time: ≤0.1s
- Body material: Anodized aluminum alloy
- Seal material: Heat-resistant NBR (Nitrile rubber)
- Temperature range: -10℃ to 80℃ (with intermittent peaks up to 120℃)
- Mechanical life: ≥1,000,000 cycles
- Weight: 215g ±5g
- Dimensions: 52mm(L) × 38mm(W) × 74mm(H) (excluding lever protrusion)
- Lever arm length: 25mm (adjustable angle ±15°)
- Mounting: Direct pipeline installation or subplate mounting
- Protection rating: IP67 (dust/water resistant)
Heavy-duty mechanical valve with precision roller lever mechanism, designed for position detection and pneumatic circuit switching in harsh environments. Features wear-resistant tungsten carbide roller and anti-vibration locknut. Optimized flow path reduces pressure drop by 18% compared to previous generations. Requires 5-50μm filtered air with ISO 8573-1:2010 Class 4.4.3 air quality.
- Automatic door safety interlocks in train systems
- Cartesian robot end effector positioning
- Production line pallet stopper mechanisms
- Textile machinery thread tension control
- Automotive welding fixture clamping sequence control
Installation guidelines:
Mount lever arm perpendicular to mechanical trigger movement direction.
Adjust roller preload using hex key (1.5mm) to achieve 0.5-1mm compression
before actuation. Lubricate pivot point with ISO VG32 hydraulic oil quarterly.
Critical note:
Avoid side-loading on lever arm - maximum permissible lateral force is 4.9N.
For vertical installations, use optional counterbalance spring kit (AS-CM3L05-SPK).
| Property | Property Value |
|---|---|
| sku | CM3L05 |
| Position | 3-Port 2-Position |
| Port Size | M5 |
