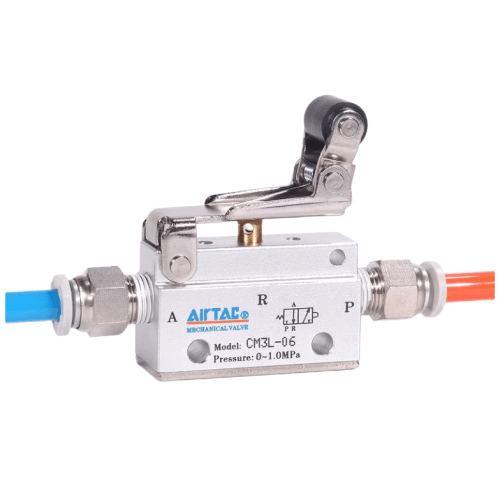

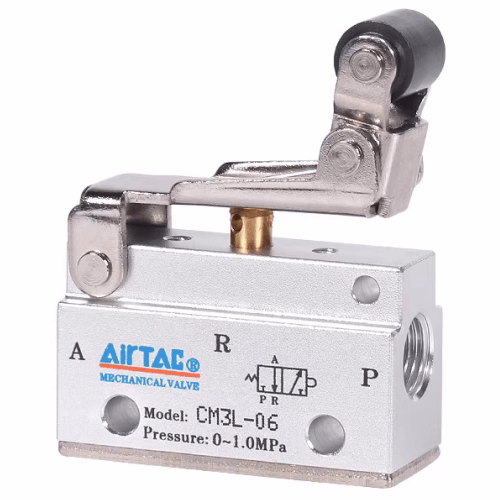

Airtac CM3L One-way Roller Lever Type Mechanical Valve CM3L06
$19.04
Regular price
$26.54
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
CM3L06
Product type:
Collections:
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
1. The CM3B, CM3L, CM3V, and CM3R series utilize external actuation mechanisms for directional switching, ideal for position sensing or limit switch applications;
2. The CM3PF, CM3PM, CM3PMS, CM3PMX, CM3PL, CM3PP, CM3HS, CM3HD, and CM3Y series feature manual operation with diverse actuator configurations, optimized for varied operational conditions;
3. Poppet valve design ensures excellent sealing performance, positive directional control, and maintenance-free operation without lubrication;
4. Multi-position mounting capability simplifies installation flexibility;
5. CM3L, CM3V, CM3R, and CM3Y series employ metallic actuators for extended service life and consistent reliability in demanding environments;
6. CM3PMS and CM3PMX models incorporate metal protective guards to shield pushbuttons from accidental actuation and mechanical interference, ensuring secure operation.
Category: Mechanical Valves , Brand: AirTAC , Series: CM3L Unidirectional Roller Lever Mechanical Valve
Installation guidelines:
Mount with lever axis perpendicular to cam movement direction.
Maintain 0.5-1mm clearance between roller and actuator cam.
Lubricate pivot point every 500,000 cycles using ISO VG32 hydraulic oil.
2. The CM3PF, CM3PM, CM3PMS, CM3PMX, CM3PL, CM3PP, CM3HS, CM3HD, and CM3Y series feature manual operation with diverse actuator configurations, optimized for varied operational conditions;
3. Poppet valve design ensures excellent sealing performance, positive directional control, and maintenance-free operation without lubrication;
4. Multi-position mounting capability simplifies installation flexibility;
5. CM3L, CM3V, CM3R, and CM3Y series employ metallic actuators for extended service life and consistent reliability in demanding environments;
6. CM3PMS and CM3PMX models incorporate metal protective guards to shield pushbuttons from accidental actuation and mechanical interference, ensuring secure operation.
Category: Mechanical Valves , Brand: AirTAC , Series: CM3L Unidirectional Roller Lever Mechanical Valve
AirTAC CM3L06 Unidirectional Roller Lever Mechanical Valve Technical Details
- Model: CM3L06 (Single-acting roller lever type)
- Port size: 1/4" NPT (G1/4 optional)
- Operation method: Mechanical lever actuation
- Actuation force: 1.5-2.0N (lever pressure)
- Operating pressure: 0.1-0.8 MPa
- Max flow rate: 850 L/min (ANR)
- Valve body material: Nickel-plated brass
- Seal material: Heat-resistant NBR (-20℃ to 120℃)
- Roller diameter: 8mm (stainless steel shaft)
- Lever stroke: 3mm ±0.5mm
- Weight: 215g ±5g
- Dimensions: 52mm(L) × 38mm(W) × 72mm(H)
- Mounting: Panel mount with M5×0.8 screws
- Vibration resistance: 10-55Hz (1.5mm amplitude)
- Shock resistance: 100m/s² (3 axes)
Heavy-duty mechanical valve with precision roller lever mechanism, designed for repetitive position detection in harsh environments. Features wear-compensating spring system and IP67-rated housing. The 360° adjustable roller head enables multi-directional cam operation.
Industrial Applications:
- Conveyor system position verification
- CNC machine tool safety interlocks
- Automated packaging line sequencing
- Textile machinery thread tension control
- Robotic arm position feedback systems
Installation guidelines:
Mount with lever axis perpendicular to cam movement direction.
Maintain 0.5-1mm clearance between roller and actuator cam.
Lubricate pivot point every 500,000 cycles using ISO VG32 hydraulic oil.
| Property | Property Value |
|---|---|
| sku | CM3L06 |
| Position | 3-Port 2-Position |
| Port Size | PT1/8 |
