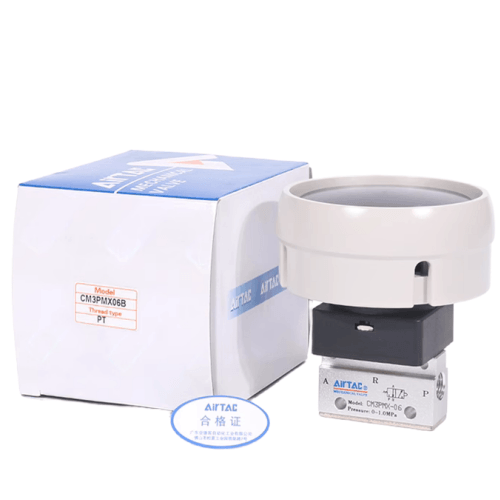

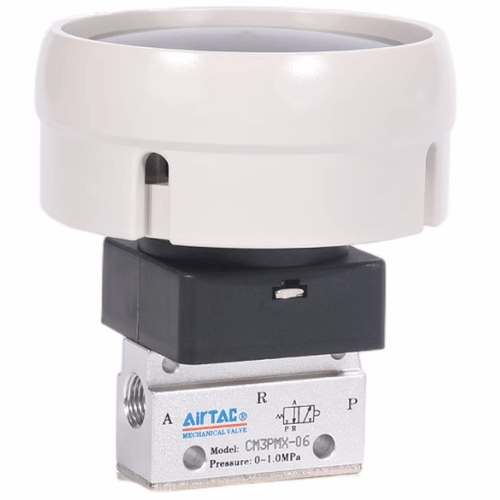

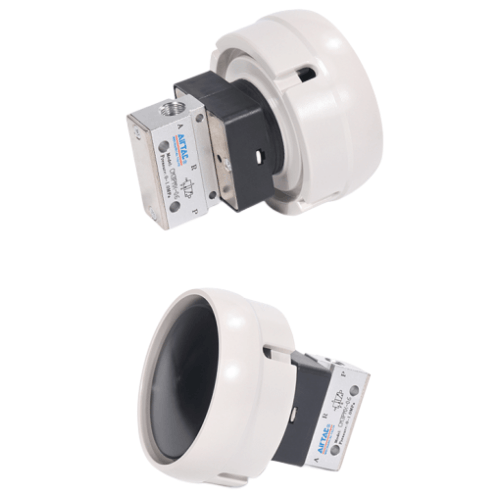

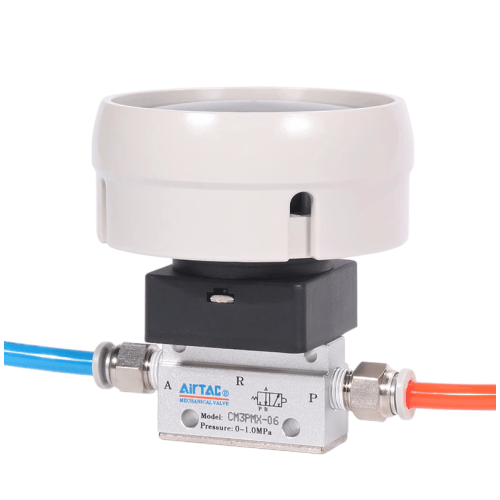

Airtac CM3PMX Large Mushroom Head Button Type Mechanical Valve CM3PMX05B
2. The CM3PF, CM3PM, CM3PMS, CM3PMX, CM3PL, CM3PP, CM3HS, CM3HD, and CM3Y series feature manual operation with diversified actuator head configurations, enabling flexible deployment under various working conditions.
3. Poppet valve design ensures superior sealing performance, smooth directional switching, and maintenance-free operation without lubrication requirements.
4. Supports multiple mounting orientations for simplified installation and space optimization.
5. CM3L, CM3V, CM3R, and CM3Y series incorporate metal actuator heads for enhanced durability and reliable long-term performance.
6. CM3PMS and CM3PMX series are equipped with metal protective covers to shield the pushbutton cap from accidental impacts and prevent unintended actuation, ensuring operational safety and reliability.
Category: Mechanical Valves, Brand: AIRTAC, Series: CM3PMX
AirTAC CM3PMX05B Large Mushroom Head Push Button Mechanical Valve Specifications
- Model: CM3PMX05B
- Type: Push-button mechanical valve (3/2-way, spring return)
- Operation style: Mushroom head emergency stop design
- Port size: G1/8 (ISO228 standard)
- Operating pressure: 0.05–0.8 MPa
- Max flow rate: 650 L/min (ANR)
- Actuation force: 30–50N (ergonomic design)
- Body material: Stainless steel (SUS303) with POM polymer components
- Seal material: Heat-resistant NBR (Nitrile rubber)
- Temperature range: -10℃ to 80℃ (with intermittent peaks to 100℃)
- Protection rating: IP65 (dust-tight and protected against water jets)
- Mechanical life: ≥500,000 cycles
- Weight: 198g ±5g
- Dimensions: 45mm(D) × 45mm(W) × 70mm(H) (excluding actuator protrusion)
- Mounting: Panel cutout Ø22mm (standard VDE/EN compatible)
Industrial-grade emergency stop valve featuring a 40mm oversized mushroom head with yellow/black safety coloration. The dual-stage actuation mechanism provides positive tactile feedback and meets ISO 13850 safety standards. Integrated mechanical latching requires manual reset after activation. Features anti-vibration locknuts and corrosion-resistant plating for harsh environments.
- Press machine emergency stop systems
- Assembly line safety interlocks
- Packaging machinery pneumatic circuit cutoff
- Material handling system emergency venting
- Food processing equipment safety controls
Installation guidelines:
Mount with 1.5–2Nm torque using included M12 mounting nuts.
Maintain minimum 15mm clearance behind panel for reset operation.
Test monthly by full depression and clockwise reset twist.
Not suitable for continuous duty cycling applications.
| Property | Property Value |
|---|---|
| sku | CM3PMX05B |
| Position | 3-Port 2-Position |
| Port Size | M5 |
