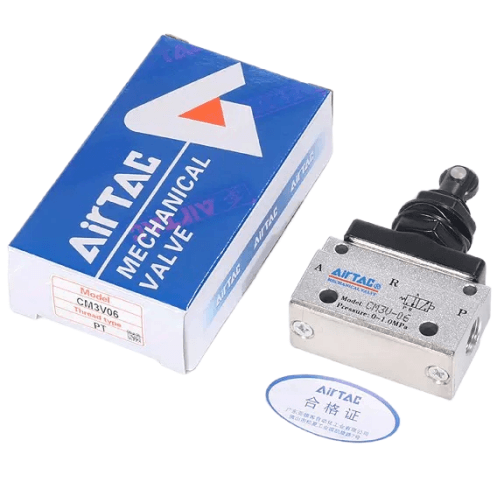

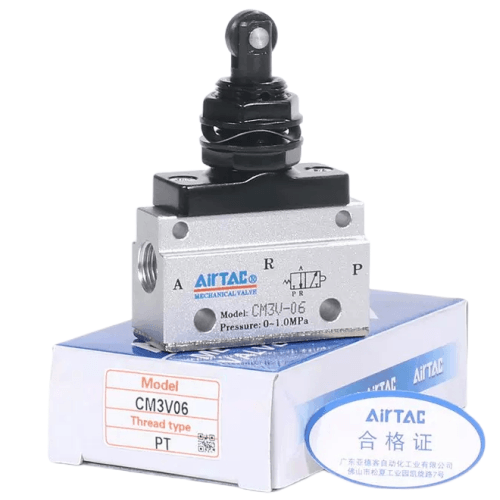

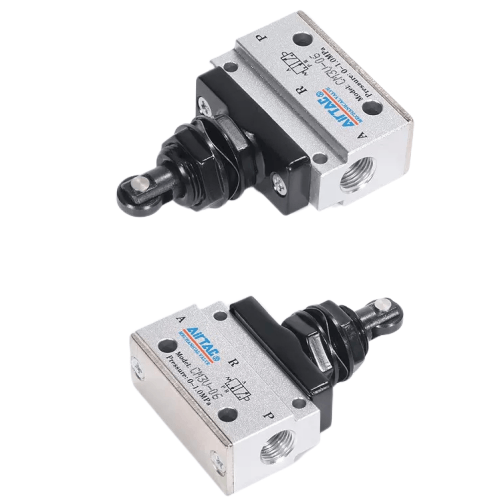

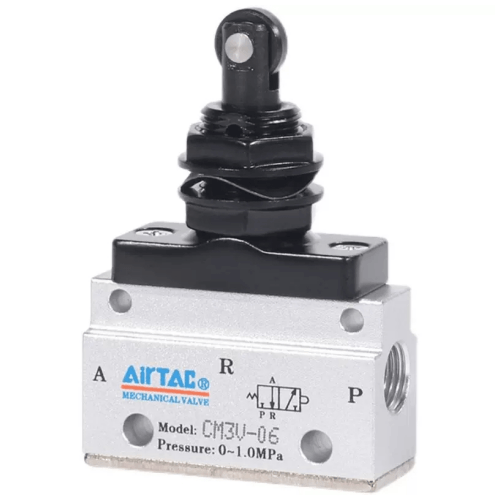

Airtac CM3V Vertical Roller Type Mechanical Valve CM3V06
2. The CM3PF, CM3PM, CM3PMS, CM3PMX, CM3PL, CM3PP, CM3HS, CM3HD, and CM3Y series feature manual operation with multiple actuator configurations to suit diverse application requirements;
3. Poppet valve design ensures positive sealing performance, smooth directional switching, and maintenance-free operation without lubrication;
4. Versatile mounting orientations simplify installation and system integration;
5. CM3L, CM3V, CM3R, and CM3Y series employ metal actuator components for extended longevity and reliable performance in demanding environments;
6. CM3PMS and CM3PMX series incorporate integrated metal protective housing to safeguard push buttons against accidental actuation and mechanical impact, ensuring enhanced operational safety.
Category: Mechanical Valves , Brand: AIRTAC , Series: CM3V Vertical Roller Type Mechanical Valve
AirTAC CM3V06 Vertical Roller Type Mechanical Valve Specifications
- Model: CM3V06
- Type: 3/2-way normally closed (mechanical roller actuation)
- Port size: PT1/8 (G1/8 optional)
- Operating pressure: 0.05–1.0 MPa
- Operating temperature: -5℃ to 80℃
- Valve body material: Anodized aluminum alloy
- Seal material: NBR (nitrile rubber)
- Actuation force: ≤5N (roller arm)
- Mounting style: Panel mount with 30mm hole spacing
- Weight: 220g ±5%
- Dimensions: 52mm(L) × 32mm(W) × 68mm(H)
- Flow coefficient (Cv): 0.45
- Response time: ≤0.5s
- Protection rating: IP67
- Cycle life: ≥5 million operations
Vertical roller-actuated mechanical valve designed for precise position control in harsh environments. Features a stainless steel roller arm with 2mm overtravel protection and dust-resistant mechanism. Optimized for high-frequency mechanical triggering with low actuation force. Requires 5-40μm filtered compressed air.
- Automated conveyor system position sensors
- Safety door interlocks in production lines
- Cartesian robot end effector controls
- Textile machinery thread tension systems
- Packaging machine product presence detection
Installation note:
Mount vertically with roller arm perpendicular to actuation direction.
Maintain 15° maximum angular tolerance. Lubricate roller bearings every
50,000 cycles using ISO VG32 hydraulic oil.
Avoid side-loading forces exceeding 10N
on roller arm. Use shock-absorbing stoppers for high-impact applications.
| Property | Property Value |
|---|---|
| sku | CM3V06 |
| Position | 3-Port 2-Position |
| Port Size | PT1/8 |
