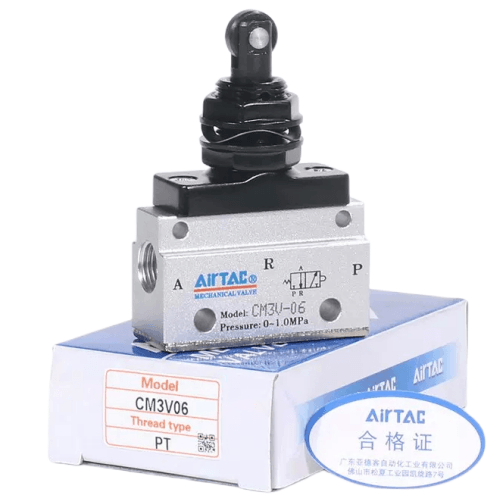

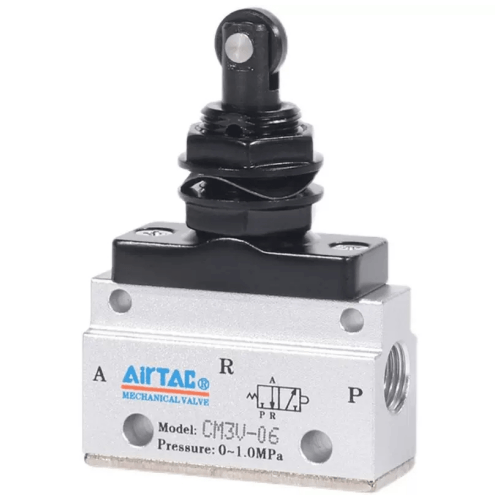

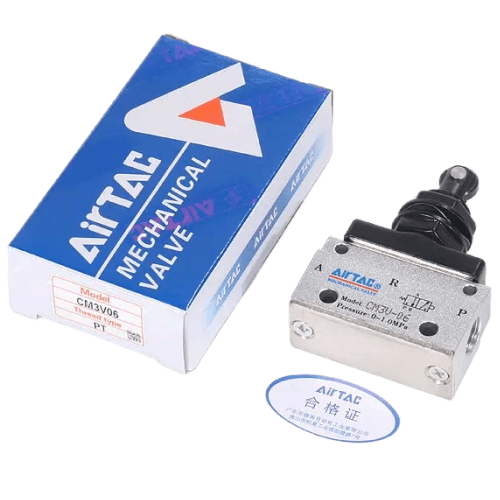

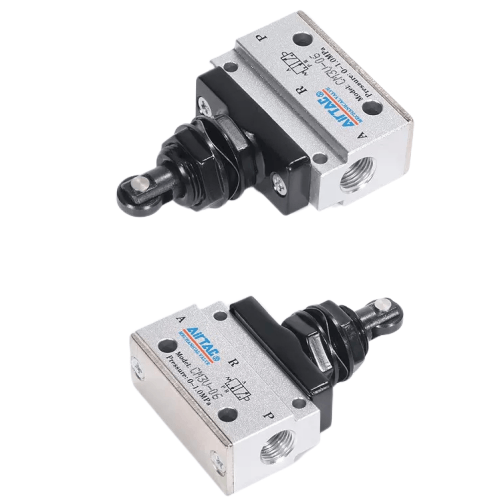

Airtac CM3V Vertical Roller Type Mechanical Valve CM3V06-P1
2. The CM3PF, CM3PM, CM3PMS, CM3PMX, CM3PL, CM3PP, CM3HS, CM3HD, and CM3Y series feature manual operation with multiple actuator configurations to suit diverse application requirements;
3. Poppet valve design ensures positive sealing performance, smooth directional switching, and maintenance-free operation without lubrication;
4. Versatile mounting orientations simplify installation and system integration;
5. CM3L, CM3V, CM3R, and CM3Y series employ metal actuator components for extended longevity and reliable performance in demanding environments;
6. CM3PMS and CM3PMX series incorporate integrated metal protective housing to safeguard push buttons against accidental actuation and mechanical impact, ensuring enhanced operational safety.
Category: Mechanical Valves , Brand: AIRTAC , Series: CM3V Vertical Roller Type Mechanical Valve
AirTAC CM3V Vertical Roller Lever Mechanical Valve CM3V06-P1 Specifications
- Model: CM3V06-P1
- Type: 3/2-way normally closed (mechanical roller lever actuation)
- Port size: PT1/8 (G1/8 optional)
- Operating pressure: 0.05–0.8 MPa
- Max flow rate: 750 L/min (ANR)
- Actuation force: 3.5N ±0.5N at roller tip
- Lever stroke: 3mm ±0.5mm
- Body material: Die-cast aluminum alloy (anodized finish)
- Seal material: Heat-resistant NBR
- Temperature range: -5℃ to 80℃ (with intermittent peaks to 100℃)
- Weight: 220g ±5g
- Dimensions: 53mm(L) × 34mm(W) × 73mm(H)
- Mounting: Direct piping or sub-base mounting (ISO 15407-1 compatible)
- Protection rating: IP67 (dust/water resistant)
Heavy-duty mechanical valve with vertical roller lever for precise position sensing in harsh environments. Features anti-vibration design with stainless steel return spring and wear-resistant PTFE bushing. Optimized for high cycle rates (up to 1 million operations) with manual override capability. Requires lubrication-free operation.
- Cartesian robot end effector position control
- Conveyor belt package sorting mechanisms
- Industrial door safety interlocks
- Textile machinery thread tension systems
- Automated assembly line jig triggers
Installation note:
Maintain 15° angular tolerance for lever alignment. Apply thread sealant
(PTFE tape excluded) on port connections. Test lever engagement force
after installation using force gauge.
| Property | Property Value |
|---|---|
| sku | CM3V06-P1 |
| Position | Please provide the specific AirTAC product attribute values you need translated, and I will return the accurate English terminology. |
| Port Size | Please provide the specific AirTAC product attribute values you need translated, and I will return the accurate English terminology. |
