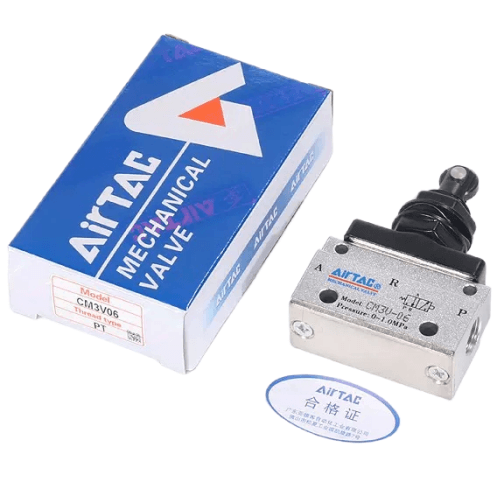

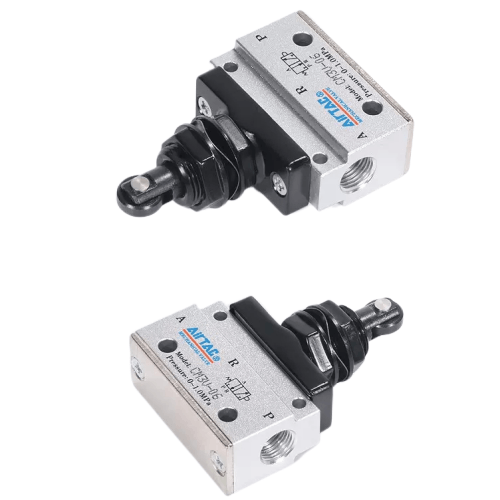

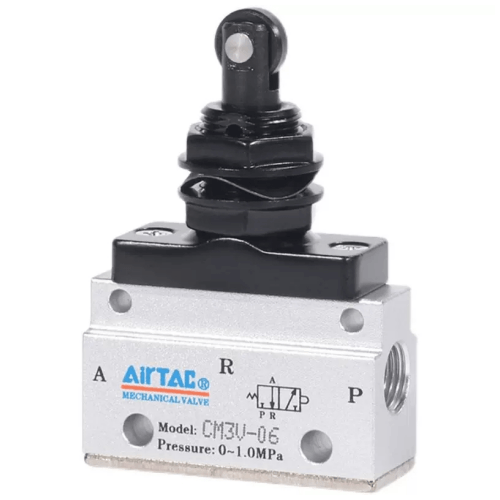

Airtac CM3V Vertical Roller Type Mechanical Valve CM3V08
2. The CM3PF, CM3PM, CM3PMS, CM3PMX, CM3PL, CM3PP, CM3HS, CM3HD, and CM3Y series feature manual operation with multiple actuator configurations to suit diverse application requirements;
3. Poppet valve design ensures positive sealing performance, smooth directional switching, and maintenance-free operation without lubrication;
4. Versatile mounting orientations simplify installation and system integration;
5. CM3L, CM3V, CM3R, and CM3Y series employ metal actuator components for extended longevity and reliable performance in demanding environments;
6. CM3PMS and CM3PMX series incorporate integrated metal protective housing to safeguard push buttons against accidental actuation and mechanical impact, ensuring enhanced operational safety.
Category: Mechanical Valves , Brand: AIRTAC , Series: CM3V Vertical Roller Type Mechanical Valve
AirTAC CM3V08 Vertical Roller Type Mechanical Valve Specifications
- Model: CM3V08
- Type: 3/2-way normally closed (mechanical roller actuation)
- Port size: PT1/4 (G1/4 optional)
- Operating pressure: 0.05–0.8 MPa
- Operating force: 2.5N min. roller actuation force
- Flow capacity: 750 L/min (ANR)
- Body material: Aluminum alloy (hard anodized)
- Seal material: Heat-resistant NBR
- Temperature range: -10℃ to 80℃ (with intermittent peaks up to 120℃)
- Weight: 320g ±5% (including accessories)
- Dimensions: 58mm(L) × 42mm(W) × 72mm(H)
- Mounting orientation: Vertical operation required (±5° tolerance)
- Roller stroke: 3mm with 1.5mm pretravel
- Repeat accuracy: ±0.2mm
- Protection rating: IP67 (dustproof/water immersion resistant)
- Lifespan: 10 million cycles minimum
Heavy-duty mechanical valve featuring roller-arm actuation for precise position sensing in harsh environments. The hardened stainless steel roller and dual-coil spring mechanism ensure reliable operation under vibration. Includes built-in silencer and shock-absorbing bumper. Compatible with ISO 15407-1 standards.
- Palletizer position detection in logistics systems
- Safety door interlocks in press machines
- Cartesian robot end effector positioning
- Conveyor jam detection systems
- Agricultural machinery limit switches
Installation guidelines:
Mount using M5 screws with 30-35N·m torque. Maintain vertical alignment
within 5° deviation. Lubricate roller pivot quarterly with ISO VG32 hydraulic oil.
Avoid installation near strong magnetic fields (>80mT).
Critical note:
Requires mechanical arm clearance of ≥15mm during full stroke.
Not compatible with pulsating air systems above 2Hz frequency.
| Property | Property Value |
|---|---|
| sku | CM3V08 |
| Position | 3-Port 2-Position |
| Port Size | PT1/4 |
