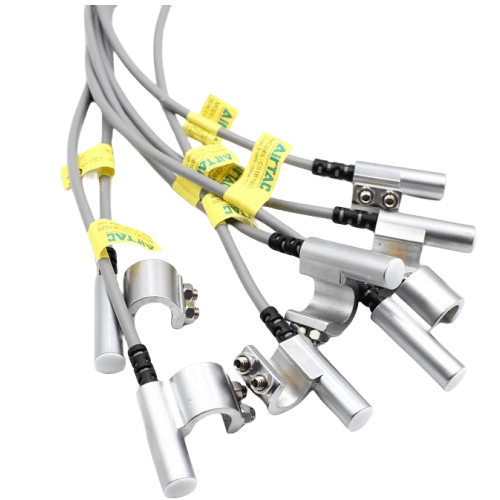

Airtac CS1B Reed Sensor CS1B8X020
2. This deceptively simple mechanism provides reliable circuit control through contact closure, demonstrating exceptional durability and stability across diverse industrial automation systems and commercial equipment applications.
AirTAC CS1B Magnetic Reed Sensor CS1B8X020 Technical Details
- Model: CS1B8X020
- Type: Non-contact magnetic proximity sensor (Reed switch)
- Operating voltage: DC 5-30V (±10%)
- Output type: NPN normally open (NO)
- Detection distance: 8mm ±10%
- Operating temperature: -25℃ to +70℃
- Protection rating: IP67 (dust/water resistant)
- Housing material: Nickel-plated brass
- Cable length: 2m standard (4-core shielded)
- Response frequency: ≤100Hz
- Repeat accuracy: ±0.5mm
- Weight: 45g ±3%
- Dimensions: 18mm(D) × 46mm(L) × 8mm(H)
Compact magnetic proximity sensor with reed switch technology, featuring dual-color LED status indication (red/green). Designed for precise position detection in harsh environments with built-in surge protection and reverse polarity safeguard. The brass housing ensures EMI resistance and mechanical durability.
- Cylinder piston position feedback in pneumatic systems
- Machine tool safety door monitoring
- Automated conveyor belt position verification
- Elevator car leveling detection
- Hydraulic press stroke limit control
Installation guidelines:
Maintain 3-5mm gap between sensor face and magnetic actuator.
Avoid mounting near strong electromagnetic sources.
Cable bending radius should exceed 25mm during routing.
| Property | Property Value |
|---|---|
| sku | CS1B8X020 |
