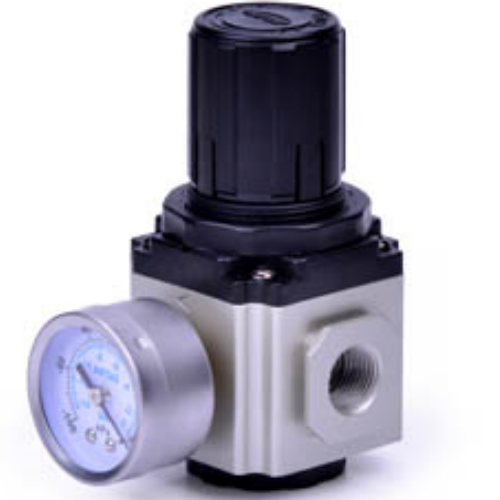

Airtac GVR Vacuum Pressure Regulating Valve GVR30010
A cropped merino wool cardigan taken up a notch, thanks to the flecks of metallic thread throughout. We love it even more paired with the matching sweater-pants.
2. Stable pressure regulation with minimal pressure deviation and excellent pressure characteristics;
3. Supports both panel mounting and optional fixed bracket installation.
Category: Vacuum Regulating Valve, Brand: AIRTAC, Series: GVR
AirTAC GVR30010 Vacuum Regulator Specifications
- Model: GVR30010
- Type: Vacuum pressure regulator with gauge
- Port size: PT1/4 (BSPP thread)
- Pressure range: 0.05–0.95 MPa (7–138 PSI)
- Max vacuum level: -100 kPa (-14.5 PSI)
- Flow capacity: 300 L/min (at 0.5 MPa)
- Body material: Anodized aluminum alloy
- Seal material: NBR (Nitrile rubber)
- Gauge range: -100 kPa to 1.0 MPa
- Temperature range: -10℃ to 60℃
- Weight: 850g (1.87 lbs)
- Dimensions: 100mm(L) × 65mm(W) × 85mm(H)
- Mounting orientation: Vertical/horizontal (gauge must face upward)
- Response time: ≤0.3 seconds
- Compatible fluids: Air, non-corrosive gases
Precision vacuum/pressure regulation valve with integrated analog gauge, featuring dual-chamber diaphragm design for stable output under fluctuating input pressures. The corrosion-resistant body and anti-vibration gauge make it ideal for industrial automation environments. Includes tamper-proof adjustment knob with ±2% pressure regulation accuracy.
- Vacuum gripping systems in robotic automation
- Plastic molding machine pressure control
- Medical suction equipment regulation
- Semiconductor wafer handling systems
- Packaging machine vacuum seal verification
Installation note:
Install downstream of filter regulator (5μm minimum filtration).
For optimal performance, maintain ambient temperature between 5℃-40℃
and use thread sealant on all connections. Allow 2 full pressure cycles
before calibration.
- Drain condensate weekly via bottom exhaust port
- Replace filter element every 2,000 operating hours
- Lubricate adjustment screw quarterly with silicone grease
| Property | Property Value |
|---|---|
| sku | GVR30010 |
| Port Size | PT3/8 |
