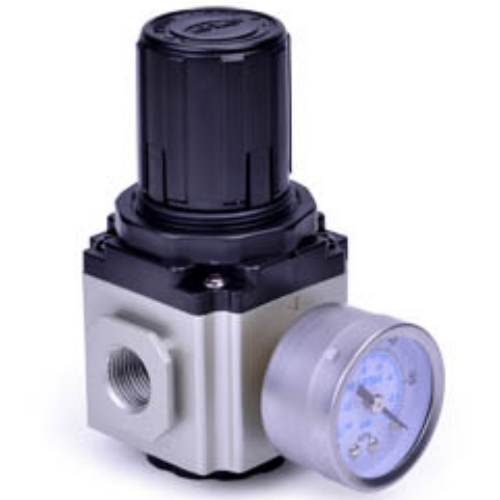

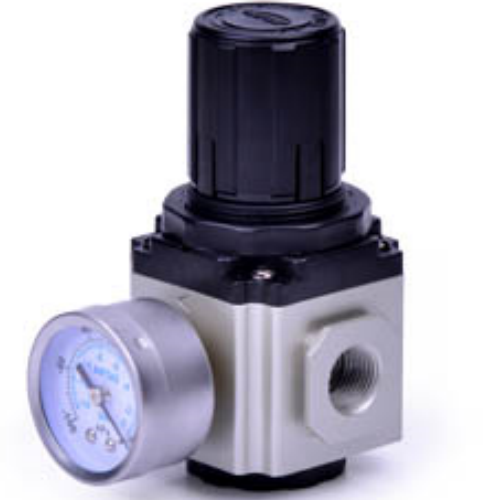

Airtac GVR Vacuum Pressure Regulating Valve GVR30010N
A cropped merino wool cardigan taken up a notch, thanks to the flecks of metallic thread throughout. We love it even more paired with the matching sweater-pants.
2. Stable pressure regulation with minimal pressure deviation and excellent pressure characteristics;
3. Supports both panel mounting and optional fixed bracket installation.
Category: Vacuum Regulating Valve, Brand: AIRTAC, Series: GVR
AirTAC GVR Series Vacuum Regulating Valve GVR30010N Specifications
- Model: GVR30010N
- Type: Vacuum pressure regulator with gauge
- Port size: PT1/4 (ISO G1/4 compatible)
- Operating pressure range: -100 kPa to 0.8 MPa
- Vacuum range: -100 kPa to -20 kPa (adjustable)
- Body material: Anodized aluminum alloy
- Seal material: FKM (Fluorocarbon rubber)
- Temperature range: -10℃ to 60℃ (with 0-90% RH non-freezing)
- Effective flow rate: 300 NL/min (ANR)
- Weight: 450g ±5%
- Dimensions: 82mm(H) × 50mm(W) × 50mm(D)
- Pressure gauge range: Dual scale (-0.1-0 MPa / -76-0 cmHg)
- Adjustment knob rotation: 270° with lockable setting
- Port thread depth: 10mm (minimum engagement)
Precision vacuum regulator with integrated pressure gauge, engineered for stable vacuum control in clean environments. Features zero leakage design with FKM seals for chemical resistance. The dual-scale gauge enables both MPa and cmHg readings, while the anti-vibration knob maintains setpoints under pulsation. Requires upstream filtration (5μm recommended).
- Vacuum gripper systems in pick-and-place robots
- Medical suction equipment pressure stabilization
- Semiconductor wafer handling vacuum circuits
- Packaging machine vacuum sealing stations
- Laboratory vacuum chamber pressure regulation
Installation note:
Mount vertically with gauge facing forward for readability. Use thread sealant on male ports only.
Allow 15mm clearance behind adjustment knob for maintenance access. Perform initial calibration at 20-25℃.
| Property | Property Value |
|---|---|
| sku | GVR30010N |
| Port Size | PT3/8 |
