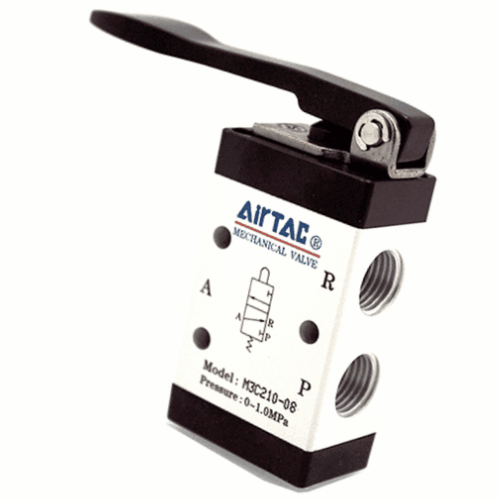

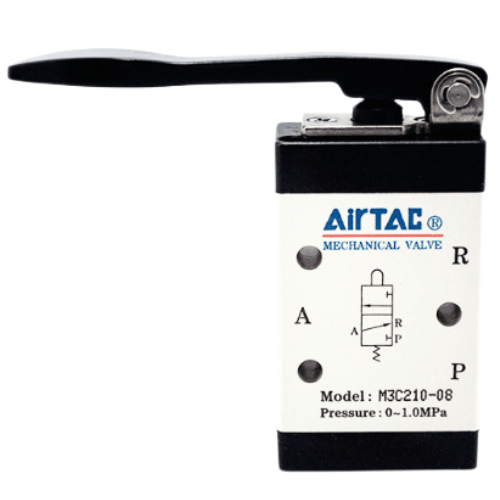

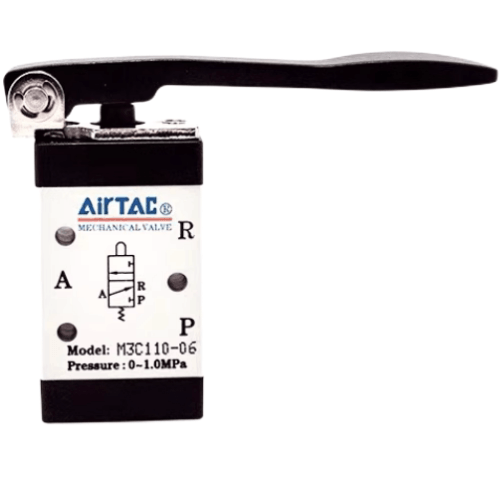

Airtac M3C Long Handle Type Mechanical Valve M3C11006
2、M3B/M3R/M3L series utilize external mechanisms to provide actuation force, suitable for position sensing or limit switch applications;
3、M3C/M3D/M3Y/M3PF/M3PM/M3PP/M3PL/M3HS series feature manual operation with multiple actuator configurations for diverse operating conditions;
4、Spool-type design ensures consistent control force independent of working pressure (zero back-pressure effect), enhanced by internal seal rings for optimal sealing performance and smooth directional switching;
5、Maintenance-free lubrication system eliminates routine oiling requirements;
6、Multi-position installation capability enables versatile integration;
7、M3C/M3D/M3Y/M3R/M3I series employ metallic actuator heads for extended longevity, reliability, and operational stability.
Category: Mechanical Valves | Brand: AirTAC | Series: M3C Long Lever Mechanical Valve
AirTAC M3C Long Handle Mechanical Valve M3C11006 Technical Details
- Model: M3C11006
- Type: 3/2-way normally closed (manual override)
- Port size: G1/8 (BSPP) / PT1/8 (NPT optional)
- Operating pressure: 0.15–0.8 MPa (21.7–116 PSI)
- Max flow rate: 850 L/min (Cv=0.48)
- Actuation force: 25N (5.6 lbf) lever operation
- Valve body material: Anodized aluminum alloy
- Seal material: HNBR (High-strength nitrile)
- Temperature range: -20℃ to 80℃ (-4°F to 176°F)
- Weight: 215g ±5g (7.58 oz)
- Dimensions: 80mm(L) × 32mm(W) × 50mm(H)
- Handle length: 65mm (extended ergonomic grip)
- Mounting: ISO 15407-1 compliant sub-base
- Protection rating: IP67 (dust/water resistant)
Robust manual override valve with extended lever for tactile operation in confined spaces. Features dual-color position indicator (green/red) and hardened steel pivot mechanism rated for 500,000+ cycles. The chamfered port design prevents thread damage during installation. Compatible with ISO VG32 hydraulic oil and standard pneumatic fluids.
- Emergency stop systems in assembly lines
- Manual mode override for automated machinery
- Pneumatic press safety bypass operations
- Mobile construction equipment controls
- Process line maintenance lockout procedures
Installation guidelines:
Apply 25-35Nm torque during port connection. Lubricate pivot point with MIL-PRF-6085 grease quarterly.
Ensure lever sweep arc (120°) remains unobstructed. Use locknut (included) for vibration-prone environments.
| Property | Property Value |
|---|---|
| sku | M3C11006 |
| Position | 3-Port 2-Position |
| Port Size | PT1/8 |
