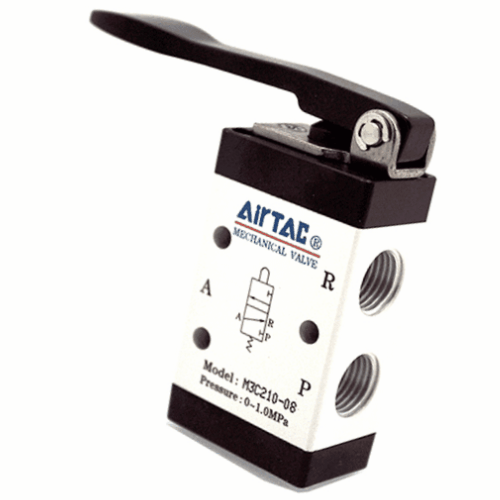

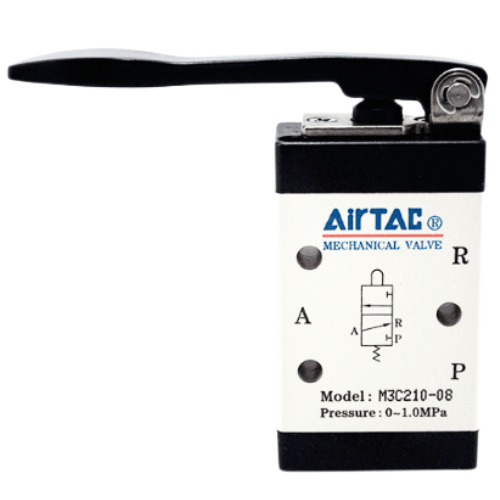

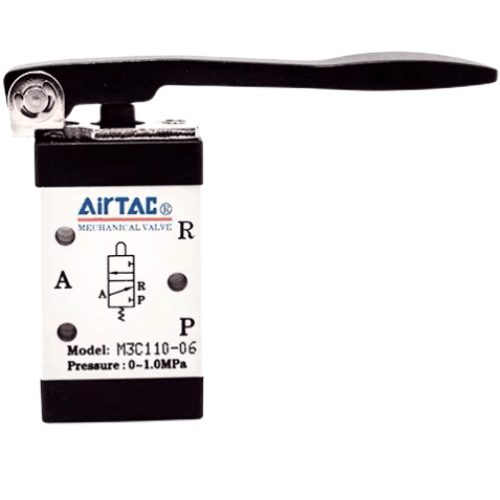

Airtac M3C Long Handle Type Mechanical Valve M3C210-P13A
$6.94
Regular price
$14.44
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
M3C210-P13A
Product type:
Collections:
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
1、Exhaust ports integrated on valve body facilitate silencer installation for noise reduction and contamination control;
2、M3B/M3R/M3L series utilize external mechanisms to provide actuation force, suitable for position sensing or limit switch applications;
3、M3C/M3D/M3Y/M3PF/M3PM/M3PP/M3PL/M3HS series feature manual operation with multiple actuator configurations for diverse operating conditions;
4、Spool-type design ensures consistent control force independent of working pressure (zero back-pressure effect), enhanced by internal seal rings for optimal sealing performance and smooth directional switching;
5、Maintenance-free lubrication system eliminates routine oiling requirements;
6、Multi-position installation capability enables versatile integration;
7、M3C/M3D/M3Y/M3R/M3I series employ metallic actuator heads for extended longevity, reliability, and operational stability.
Category: Mechanical Valves | Brand: AirTAC | Series: M3C Long Lever Mechanical Valve
Installation guidelines:
Apply 2-3Nm torque during port connection. Lubricate handle pivot quarterly with ISO VG32 hydraulic oil.
For vertical mounting, install drain port downward to prevent moisture accumulation.
2、M3B/M3R/M3L series utilize external mechanisms to provide actuation force, suitable for position sensing or limit switch applications;
3、M3C/M3D/M3Y/M3PF/M3PM/M3PP/M3PL/M3HS series feature manual operation with multiple actuator configurations for diverse operating conditions;
4、Spool-type design ensures consistent control force independent of working pressure (zero back-pressure effect), enhanced by internal seal rings for optimal sealing performance and smooth directional switching;
5、Maintenance-free lubrication system eliminates routine oiling requirements;
6、Multi-position installation capability enables versatile integration;
7、M3C/M3D/M3Y/M3R/M3I series employ metallic actuator heads for extended longevity, reliability, and operational stability.
Category: Mechanical Valves | Brand: AirTAC | Series: M3C Long Lever Mechanical Valve
AirTAC M3C Long-Handle Mechanical Valve M3C210-P13A Technical Details
- Model: M3C210-P13A
- Type: 3/2-way normally closed mechanical valve (manual override)
- Actuation: 90° rotary handle operation
- Port size: PT1/4 (G1/4 equivalent)
- Operating pressure: 0.05–1.0 MPa
- Max flow rate: 850 L/min (ANR)
- Weight: 320g ±5% (including handle)
- Dimensions: 120mm(L) × 42mm(W) × 38mm(H)
- Body material: Aluminum alloy with hard anodizing
- Seal material: HNBR rubber (-20℃ to 120℃)
- Temperature range: -20℃ to 80℃ (with silicone grease below 0℃)
- Mounting orientation: Any (horizontal recommended for ergonomics)
- Port thread depth: 12mm (minimum engagement 9mm)
- Mechanical life: ≥500,000 cycles
- Protection rating: IP67 (dust/water resistant)
Heavy-duty manual override valve featuring ergonomic T-shaped handle with non-slip grooves. The extended 85mm lever arm provides 3:1 mechanical advantage for high-pressure systems. Integrated position indicator window shows flow status. Compatible with ISO 15407-1 standards.
Industrial Applications:
- Emergency shutdown systems in hydraulic presses
- Manual control override for automated assembly lines
- Maintenance bypass in plastic injection molding machines
- Pneumatic circuit isolation during equipment servicing
- Safety lockout/tagout (LOTO) implementations
Installation guidelines:
Apply 2-3Nm torque during port connection. Lubricate handle pivot quarterly with ISO VG32 hydraulic oil.
For vertical mounting, install drain port downward to prevent moisture accumulation.
Fluid Compatibility:
Compressed air (lubricated/non-lubricated), inert gases. Not recommended for oxygen-rich environments or corrosive media.
| Property | Property Value |
|---|---|
| sku | M3C210-P13A |
| Position | Please provide the specific AirTAC product attribute values you need translated, and I will return the accurate English terminology. |
| Port Size | Please provide the specific AirTAC product attribute values you need translated, and I will return the accurate English terminology. |
