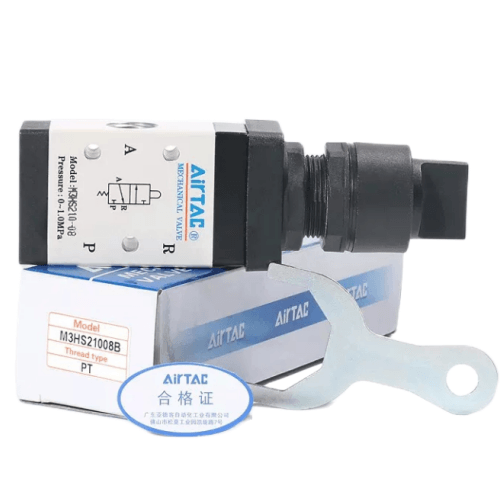

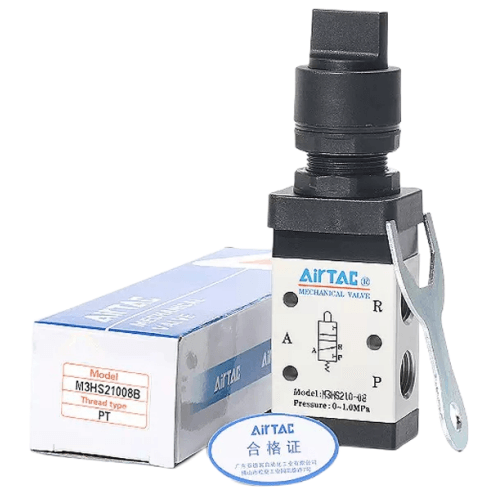

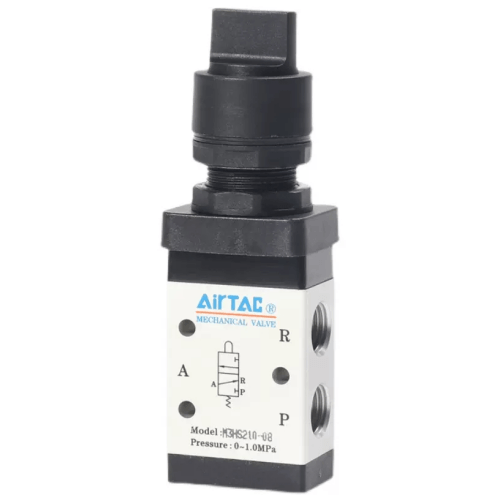

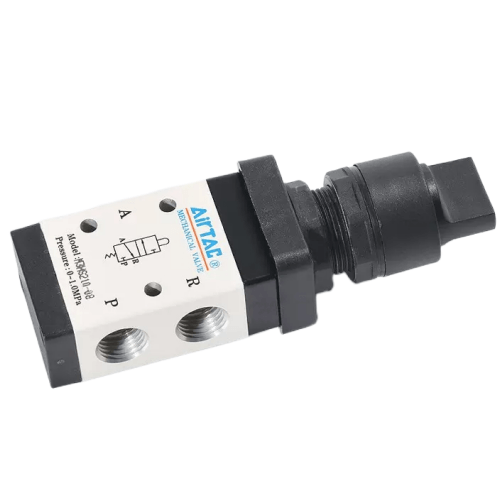

Airtac M3HS Selector Mechanical Valve M3HS11006B
2. M3B/M3R/M3L series utilize externally supplied directional switching force, suitable for position detection or limit switch applications;
3. M3C/M3D/M3Y/M3PF/M3PM/M3PP/M3PL/M3HS series feature manual operation with multiple structural configurations for diverse operational requirements;
4. Spool-type design ensures consistent control force independent of working pressure (zero backpressure effect), enhanced by internal ring sealing for reliable performance and smooth directional switching;
5. Oil-free lubrication system eliminates maintenance requirements;
6. Multi-position mounting capability ensures flexible installation options;
7. M3C/M3D/M3Y/M3R/M3I series incorporate durable metal actuators for extended service life and enhanced operational stability.
Category: Mechanical Valves | Brand: AirTAC | Series: M3HS
AirTAC M3HS11006B Selector Mechanical Valve Technical Details
- Model: M3HS11006B
- Type: 3-position selector valve (Mechanical actuation)
- Port configuration: 5 ports/3 positions
- Port size: G1/8 (ISO228-1 standard)
- Operating pressure range: 0.05–1.0 MPa
- Max flow rate: 650 L/min (ANR)
- Actuation force: 3.5N±0.5N (manual override)
- Weight: 182g±5g (with accessories)
- Dimensions: 50mm(L) × 35mm(W) × 65mm(H)
- Body material: Aluminum alloy (anodized surface)
- Seal material: HNBR (Hydrogenated Nitrile)
- Temperature range: -10℃ to 80℃ (with silicone seals optional for -20℃)
- Viscosity range: 1–200 cSt
- Response time: ≤0.3s (pressure differential 0.5MPa)
- Protection rating: IP67 (dust/water resistant)
Position-stable mechanical valve with manual override capability, featuring a unique pressure-balance spool design for smooth operation under varying loads. The chrome-plated spool and multi-stage sealing system ensure leak-free performance in high-cycle applications. Compatible with ISO 8573-1:2010 Class 3 compressed air standards.
- Pneumatic fixture clamping systems
- Assembly line tooling position switching
- Material handling equipment direction control
- Textile machinery air circuit selection
- Semiconductor manufacturing actuators
Installation guidelines:
Mount in vibration-free environments using M4 mounting screws (torque ≤1.2N·m).
Lubricate with ISO VG32 turbine oil if used in continuous operation above 60℃.
Perform monthly manual cycling for systems with infrequent valve switching.
| Property | Property Value |
|---|---|
| sku | M3HS11006B |
| Position | 3-Port 2-Position |
| Port Size | PT1/8 |
