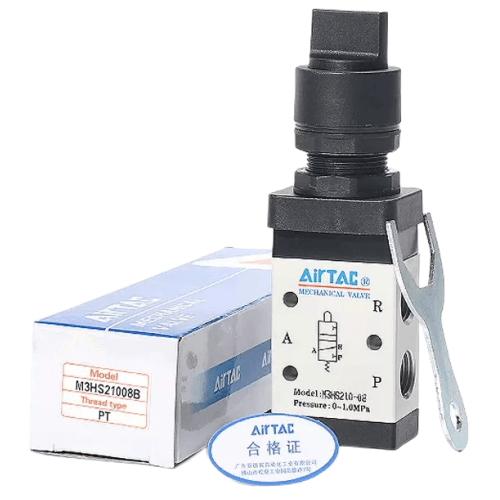

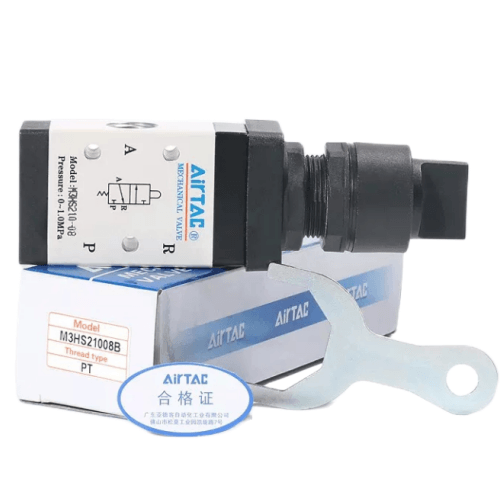

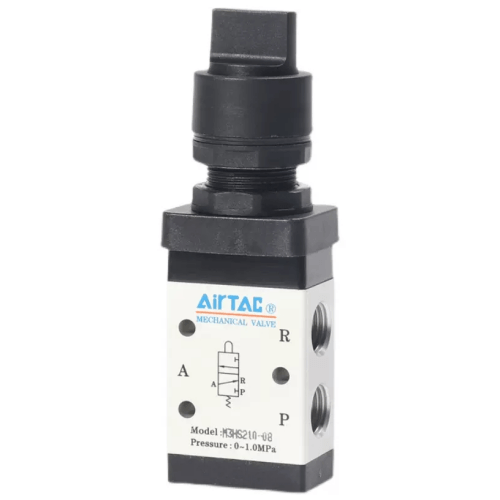

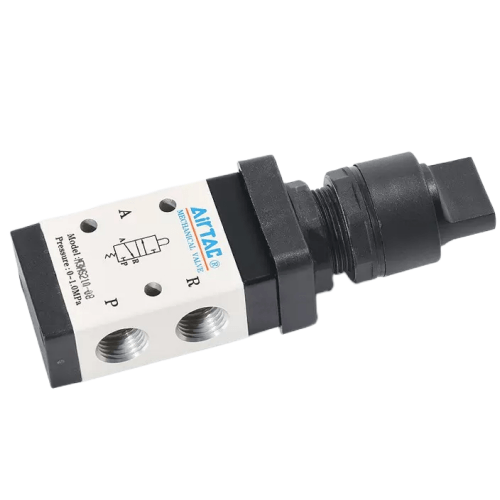

Airtac M3HS Selector Mechanical Valve M3HS21008GG
2. M3B/M3R/M3L series utilize externally supplied directional switching force, suitable for position detection or limit switch applications;
3. M3C/M3D/M3Y/M3PF/M3PM/M3PP/M3PL/M3HS series feature manual operation with multiple structural configurations for diverse operational requirements;
4. Spool-type design ensures consistent control force independent of working pressure (zero backpressure effect), enhanced by internal ring sealing for reliable performance and smooth directional switching;
5. Oil-free lubrication system eliminates maintenance requirements;
6. Multi-position mounting capability ensures flexible installation options;
7. M3C/M3D/M3Y/M3R/M3I series incorporate durable metal actuators for extended service life and enhanced operational stability.
Category: Mechanical Valves | Brand: AirTAC | Series: M3HS
AirTAC M3HS21008GG Selector Mechanical Valve Technical Details
- Model: M3HS21008GG
- Type: 3/2-way normally closed (mechanical lever-operated)
- Port size: G1/4 (BSPP thread)
- Operating pressure: 0.15–1.0 MPa
- Actuation force: ≤3.5N @ 0.5MPa
- Flow capacity: 750 L/min (ANR)
- Weight: 218g ±5g
- Dimensions: 54mm(L) × 38mm(W) × 76mm(H)
- Body material: Anodized aluminum alloy
- Seal material: HNBR (Hydrogenated Nitrile)
- Temperature range: -20℃ to 80℃ (non-freezing)
- Response time: ≤50ms (full stroke)
- Mounting orientation: Any (horizontal recommended)
- Protection rating: IP67 (dust/water resistant)
Manual override valve with positive mechanical engagement, featuring dual-position locking mechanism for reliable flow path selection. The chrome-plated stainless steel lever provides 500,000+ cycle durability. Optimized for high-vibration environments with shock resistance up to 30m/s².
- Production line emergency stop systems
- Material handling equipment mode switching
- Hydraulic system pilot control interfaces
- Agricultural machinery manual override stations
- Plastic injection molding machine safety circuits
Maintenance advisory:
Lubricate pivot points with ISO VG32 hydraulic oil every 2,000 operations.
Ensure lever returns to neutral position after actuation to prevent seal wear.
| Property | Property Value |
|---|---|
| sku | M3HS21008GG |
| Position | 3-Port 2-Position |
| Port Size | PT1/4 |
