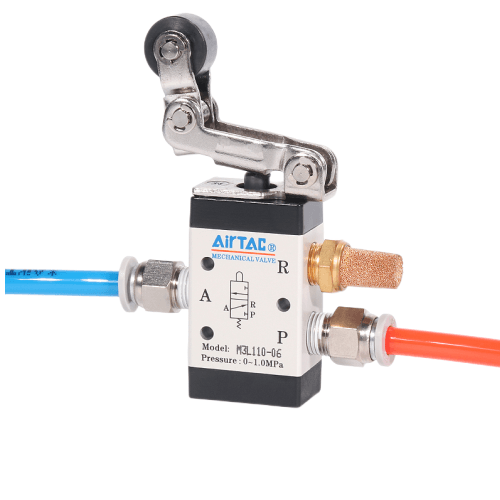

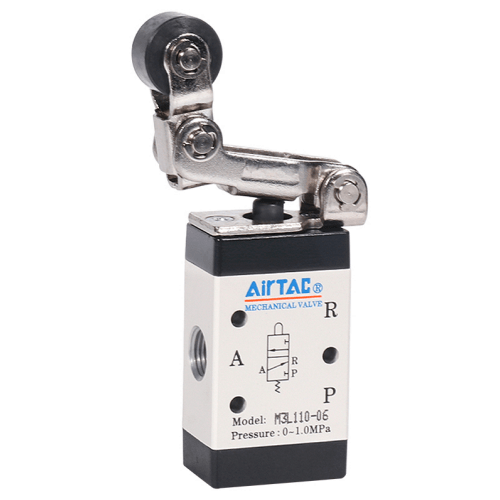

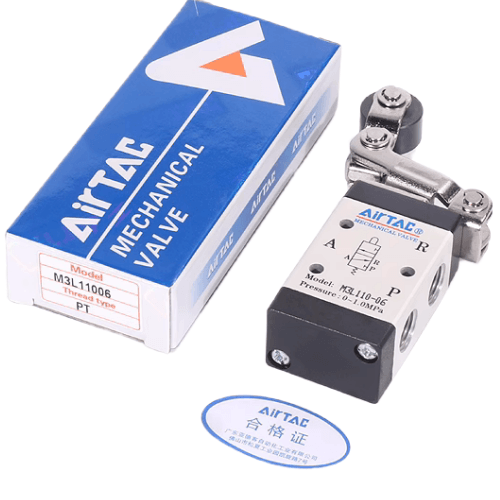

Airtac M3L One-way Roller Lever Type Mechanical Valve M3L21008
2. M3B, M3R, and M3L series feature external-force-driven actuation mechanism, suitable for position detection and limit switch applications;
3. Manual-operated M3C, M3D, M3Y, M3PF, M3PM, M3PP, M3PL, and M3HS series offer multiple actuator head configurations for versatile operational scenarios;
4. Spool-type mechanism with internal sealing ensures pressure-independent switching force (zero backpressure effect), delivering reliable sealing integrity and responsive directional control;
5. Lubrication-free operation eliminates maintenance requirements;
6. Multi-position mounting capability enhances installation flexibility;
7. Metal actuator heads on M3C, M3D, M3Y, M3R, and M3I series ensure extended service life with stable and reliable performance.
Category: Mechanical Valves | Brand: AirTAC | Series: M3L Unidirectional Roller Lever Mechanical Valve
AirTAC M3L21008 Unidirectional Roller Lever Mechanical Valve Specifications
- Model: M3L21008 (Lever-Operated Mechanical Valve)
- Type: 3/2-way normally closed (spring return)
- Port size: G1/8 (ISO228 standard)
- Operating force: 0.8-1.5N lever actuation
- Pressure range: 0.05–0.7 MPa
- Max flow rate: 450 NL/min (at 0.5 MPa)
- Valve body material: Nickel-plated brass
- Seal material: Heat-resistant NBR (-20℃ to 80℃)
- Operating temperature: -20℃ to 80℃ (non-freezing)
- Weight: 182g ±3g
- Dimensions: 60mm(L) × 30mm(W) × 25mm(H)
- Port thread depth: 10mm (full engagement recommended)
- Cycle life: ≥500,000 operations
- Mounting options: Direct piping or subplate installation
Manual override valve with roller-lever mechanism for precise tactile control in pneumatic circuits. Features zero-power operation and failsafe spring return, with brass construction resisting hydraulic oil and mild chemicals. Optimized for repetitive manual actuation in harsh environments.
- Emergency stop systems in assembly lines
- Jig clamping control in CNC machining centers
- Manual override for automated packaging systems
- Safety door interlocks in industrial ovens
- Pneumatic fixture controls in automotive testing rigs
Installation note:
Lubricate lever pivot monthly with ISO VG32 pneumatic oil.
Ensure lever has 30° minimum clearance for full stroke.
Use PTFE tape on ports with clockwise tightening (15-20Nm torque limit).
| Property | Property Value |
|---|---|
| sku | M3L21008 |
| Position | 3-Port 2-Position |
| Port Size | <1/4"> |
