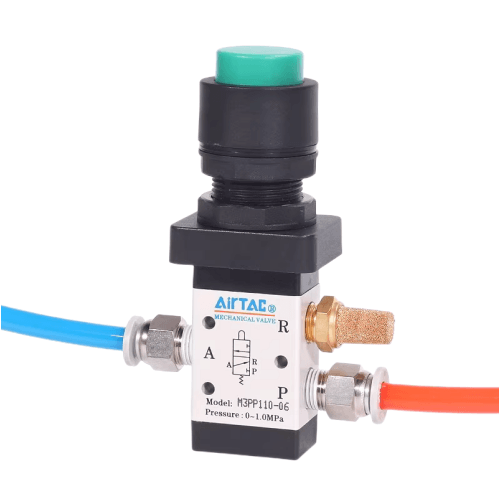

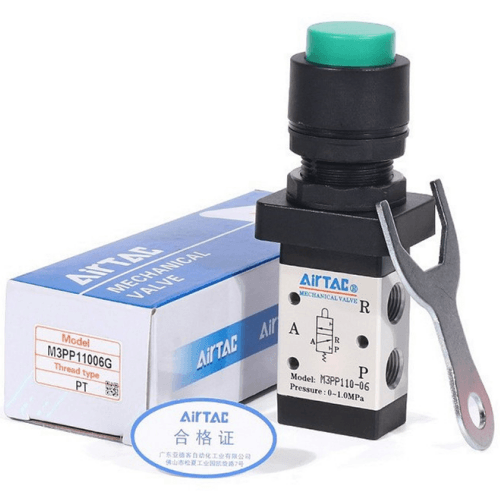

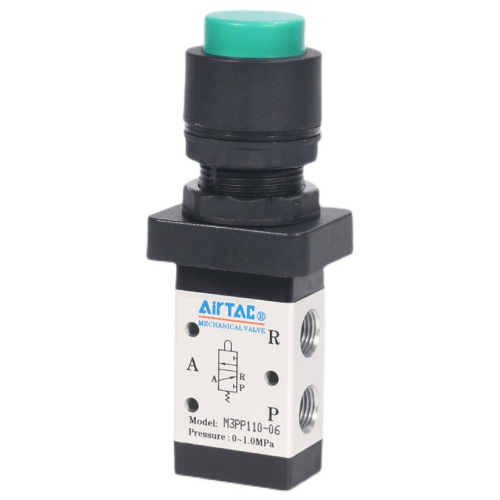

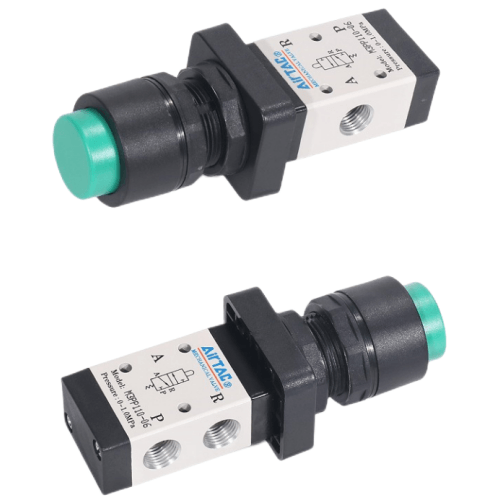

Airtac M3PP Domed Head Push Button Type Mechanical Valve M3PP21008G
A cropped merino wool cardigan taken up a notch, thanks to the flecks of metallic thread throughout. We love it even more paired with the matching sweater-pants.
2. M3B/M3R/M3L series utilize external mechanism-provided actuation force, suitable for position sensing or limit switch applications;
3. M3C/M3D/M3Y/M3PF/M3PM/M3PP/M3PL/M3HS series feature manual operation with multiple structural configurations of control heads for diverse operational conditions;
4. Spool-type design with pressure-independent actuation force (zero backpressure effect), internal sealing ring ensures reliable sealing and responsive directional switching;
5. Lubrication-free operation;
6. Multi-position mounting options for simplified installation;
7. Metal construction of control heads in M3C/M3D/M3Y/M3R/M3I series ensures extended service life and enhanced operational stability.
Category: Mechanical Valves | Brand: AirTAC | Series: M3PP
AirTAC M3PP21008G Button-Type Mechanical Valve Specifications
- Model: M3PP21008G
- Type: 3/2-way normally closed (manual reset)
- Port size: M5 × 0.8 (G1/8 equivalent)
- Operating pressure: 0.05–0.7 MPa
- Operating force: 2.5–4.5N (button actuation)
- Body material: Nickel-plated brass
- Seal material: Heat-resistant NBR (-10℃ to 120℃)
- Flow rate: 450 NL/min (at 0.5 MPa)
- Weight: 85g ±2g
- Dimensions: 30mm(L) × 20mm(W) × 15mm(H)
- Mounting style: Panel mount (Ø16mm cutout)
- Protection rating: IP67 (dust/water resistant)
- Cycle life: ≥500,000 operations
Robust manual override valve featuring tactile convex button design for precise tactile feedback in emergency stop or manual control scenarios. The chrome-plated brass construction ensures corrosion resistance in humid environments. Integrated O-ring provides leak-proof performance even under vibration conditions.
- Emergency stop circuits in CNC machinery
- Manual mode override in assembly line jigs
- Safety interlocks for robotic workcells
- Pneumatic system maintenance bypass
- Food processing equipment manual controls
Installation note:
Apply thread sealant (PTFE tape recommended) on port threads.
For panel mounting, ensure minimum 3mm thickness of mounting panel.
Test full button travel post-installation to verify proper spring return.
| Property | Property Value |
|---|---|
| sku | M3PP21008G |
| Position | 3-Port 2-Position |
| Port Size | PT1/4 |
