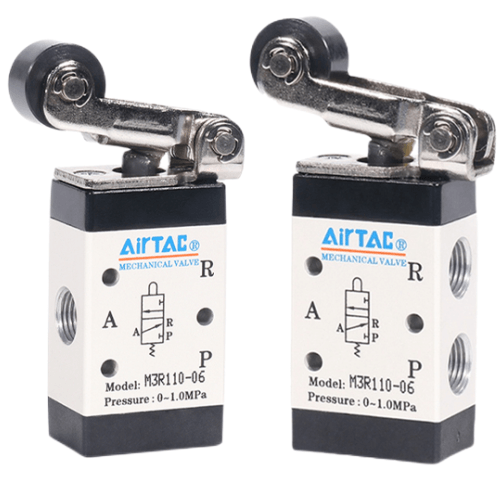

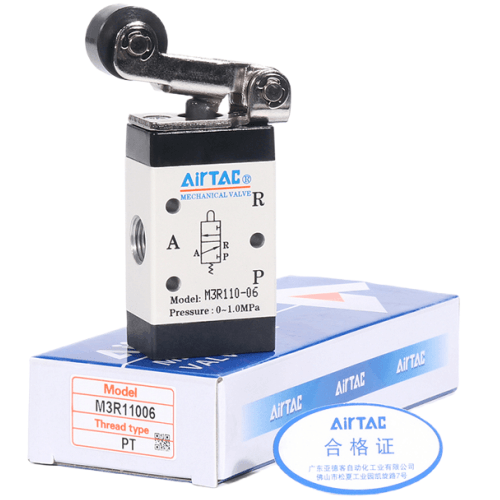

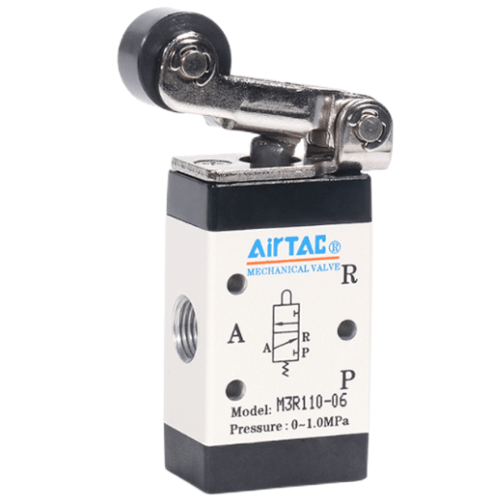

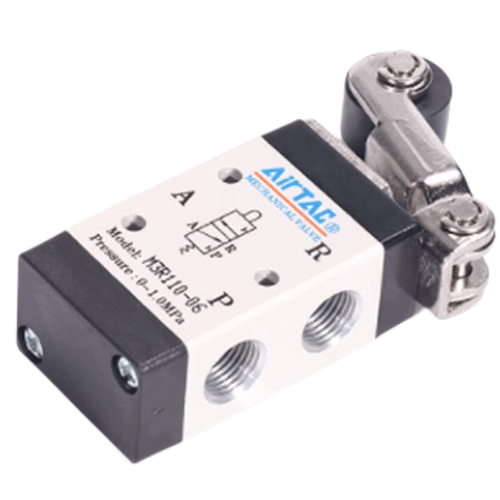

Airtac M3R Roller Lever Type Mechanical Valve M3R21008G
2. The M3B, M3R, and M3L series utilize externally sourced actuation force for directional switching, enabling integration with position sensing or limit switch applications.
3. Manual-operated M3C, M3D, M3Y, M3PF, M3PM, M3PP, M3PL, and M3HS series feature diversified actuator head configurations for optimized adaptability across operational conditions.
4. Spool-type architecture ensures consistent control force independent of working pressure (zero backpressure influence). Internal ring sealing mechanism guarantees leak-tight performance and responsive directional switching.
5. Lubrication-free operation eliminates routine maintenance requirements.
6. Multi-position mounting compatibility enhances installation flexibility and system integration efficiency.
7. Metal actuator heads in M3C, M3D, M3Y, M3R, and M3I series ensure extended service life with reliable, stable performance under demanding conditions.
**Category:** Mechanical Valves | **Brand:** AIRTAC | **Series:** M3R Roller Lever Type
AirTAC M3R Roller Lever Mechanical Valve M3R21008G Specifications
- Model: M3R21008G
- Type: 3/2-way roller lever operated (mechanical)
- Port size: PT1/8 (G1/8 thread equivalent)
- Operating pressure: 0.15–0.8 MPa (21.7–116 PSI)
- Flow capacity: 350 NL/min (ANR)
- Actuation force: ≤5N @ 0.4MPa
- Valve body material: Die-cast aluminum alloy (anodized)
- Seal material: HNBR rubber (-20℃ to 120℃)
- Lever stroke: 3.5±0.5mm
- Weight: 215g ±5g
- Dimensions: 50mm(L) × 34mm(W) × 68mm(H)
- Mounting: Direct piping or sub-base installation
- Response time: ≤0.5s (full stroke operation)
- Protection rating: IP67 (dust/water resistant)
Mechanically actuated valve with roller-equipped lever for reduced friction and extended service life. Features anti-vibration design for stable position retention and precision-machined pilot mechanism for smooth operation. The hardened stainless steel roller minimizes wear during repeated actuation cycles.
- Safety door interlocks in automated production lines
- Position sensing in material handling systems
- Emergency stop mechanisms for machinery
- Jig fixture clamping control
- Packaging machine sequence control
Installation note:
Adjust lever angle within 30°-90° from valve axis for optimal force transmission.
Lubricate pivot points every 500,000 cycles using silicone-free grease.
Ensure lateral clearance ≥5mm for lever movement.
| Property | Property Value |
|---|---|
| sku | M3R21008G |
| Position | 3-Port 2-Position |
| Port Size | PT1/4 |
