Airtac M3Y Rocker Arm Type Mechanical Valve M3Y21006
A cropped merino wool cardigan taken up a notch, thanks to the flecks of metallic thread throughout. We love it even more paired with the matching sweater-pants.
2、M3B, M3R, and M3L series utilize external mechanism-driven actuation, enabling dual functionality for position sensing and stroke switching applications.
3、Manual-operated series (M3C, M3D, M3Y, M3PF, M3PM, M3PP, M3PL, M3HS) feature diversified actuator head configurations optimized for varied operational requirements.
4、Spool-type design with pressure-independent control force (zero back-pressure effect), incorporating internal ring sealing for reliable leak-proof performance and responsive directional switching.
5、Maintenance-free operation without lubrication requirements.
6、Multi-position mounting capability ensures flexible system integration and simplified installation.
7、Metal actuator construction in M3C, M3D, M3Y, M3R, and M3I series delivers enhanced lifespan and operational stability under demanding conditions.
Category: Mechanical Valves | Brand: AIRTAC | Series: M3Y Rocker Arm Type

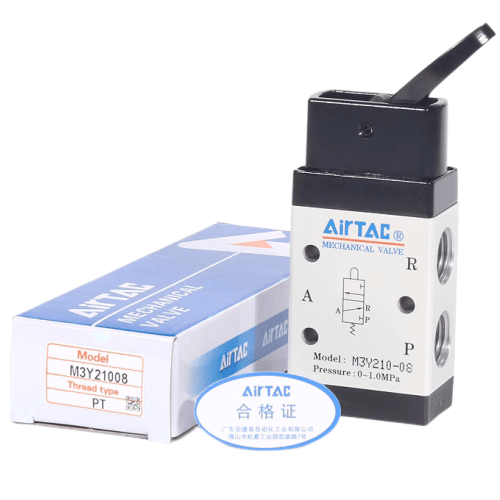

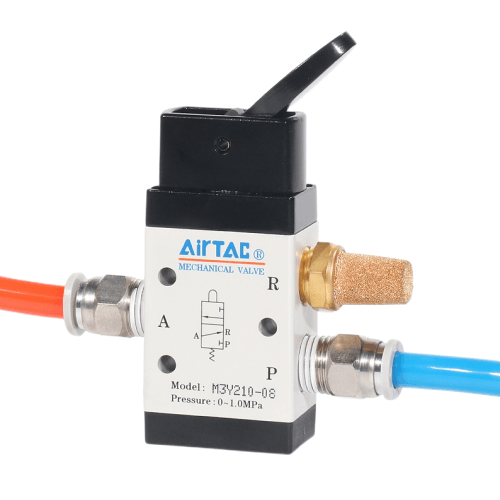

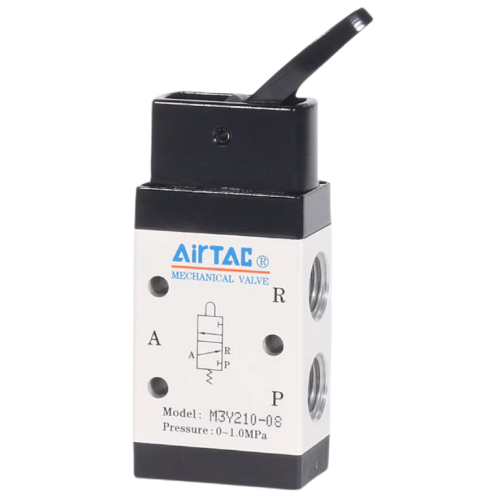

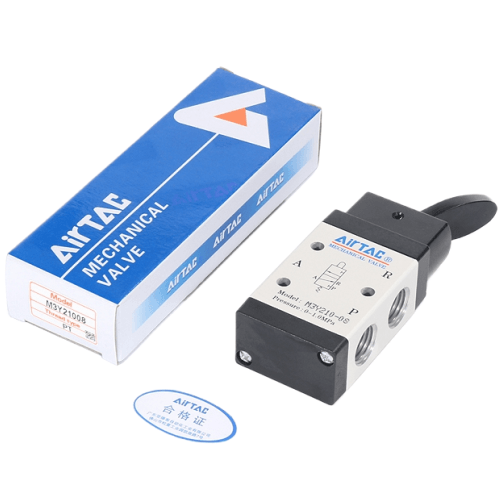

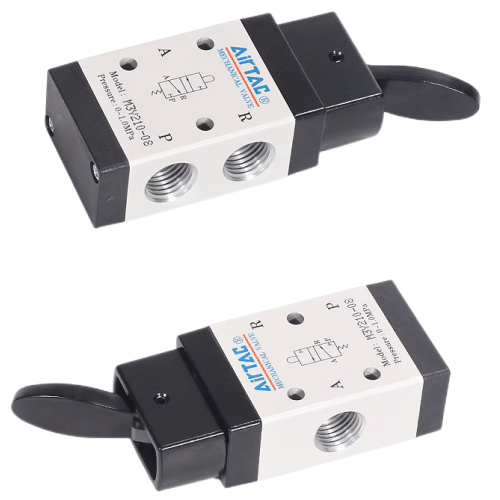

AirTAC M3Y21006 Lever-Operated Mechanical Valve Specifications
- Model: M3Y21006 (Lever Type)
- Valve Type: 3/2-way normally closed mechanical valve
- Port Size: PT1/4 (G1/8 optional)
- Operating Pressure Range: 0.15–0.8 MPa (21.7–116 PSI)
- Actuation Force: ≤3.5N lever pressure
- Flow Coefficient (Cv): 1.2
- Body Material: Anodized aluminum alloy
- Seal Material: Heat-resistant NBR (-20℃ to 80℃)
- Ambient Temperature Range: -20℃ to 80℃ (non-freezing)
- Weight: 180g ±5g
- Dimensions: 58mm(L) × 35mm(W) × 80mm(H)
- Port Thread Depth: 10mm (minimum engagement)
- Operating Mode: Manual lever actuation with mechanical latching
- Response Time: Instantaneous mechanical engagement
- Protection Rating: IP54 (dust/water resistant)
Robust lever-operated valve featuring a tactile feedback mechanism for precise manual control in pneumatic systems. The hardened steel lever pivot and wear-resistant bushings ensure >500,000 cycle durability. Includes dual O-ring seals for pressure retention and a visual position indicator window.
- Emergency stop systems in assembly lines
- Manual override in automated packaging machinery
- Position locking in material handling equipment
- Safety venting in pneumatic presses
- Mobile hydraulic/pneumatic hybrid systems
Installation Guidelines:
Mount in accessible locations with 120° lever swing clearance. Lubricate pivot point with ISO VG32 hydraulic oil quarterly.
Use thread sealant on ports and torque to 12-15N·m. Test latch engagement before pressurization.
| Property | Property Value |
|---|---|
| sku | M3Y21006 |
| Position | 3-Port 2-Position |
| Port Size | PT1/8 |
