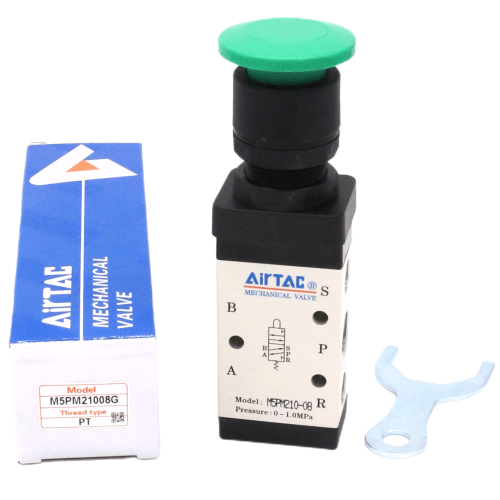

Airtac M5PM Mushroom Push Button Type Mechanical Valve M5PM21008G
$27.88
Regular price
$35.38
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
M5PM21008G
Product type:
Collections:
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description

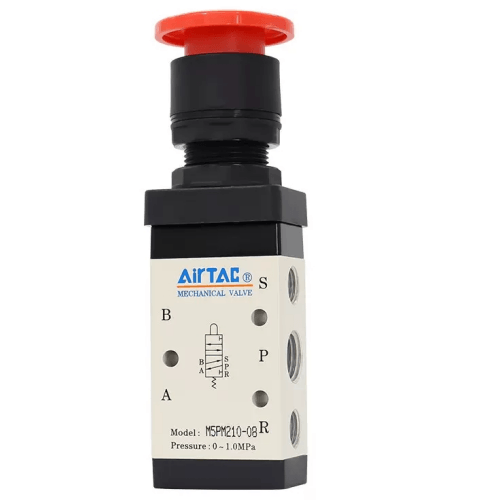

Product Description of AIRTAC M5PM Mushroom Head Push Button Mechanical Valve:
1. Exhaust ports integrated on the valve body facilitate silencer installation, effectively reducing noise and minimizing environmental contamination;
2. M5B/M5R/M5L series utilize externally provided actuation force for directional changes, suitable for position sensing or limit switch applications;
3. M5C/M5D/M5Y/M5PF/M5PM/M5PP/M5PL/M5HS series feature manual operation with diversified actuator configurations for optimal ergonomic control under varying conditions;
4. Spool-type structure ensures consistent actuation force independent of working pressure (zero back-pressure interference), incorporating internal ring sealing for enhanced leak-tight performance and smooth directional switching;
5. Maintenance-free lubrication system eliminates requirement for oil replenishment;
6. Multiple mounting orientations enable flexible installation and operational convenience;
7. Metal actuator construction in M5C/M5D/M5Y/M5R/M5L series guarantees extended service life with reinforced reliability and operational stability.
Category: Mechanical Valves, Brand: AIRTAC, Series: M5PM
Installation guidelines:
Mount on panels 1–5mm thick using supplied M4×16 mounting screws.
Maintain minimum 25mm clearance behind panel for mechanical movement.
Test monthly by full depression and clockwise reset rotation.
1. Exhaust ports integrated on the valve body facilitate silencer installation, effectively reducing noise and minimizing environmental contamination;
2. M5B/M5R/M5L series utilize externally provided actuation force for directional changes, suitable for position sensing or limit switch applications;
3. M5C/M5D/M5Y/M5PF/M5PM/M5PP/M5PL/M5HS series feature manual operation with diversified actuator configurations for optimal ergonomic control under varying conditions;
4. Spool-type structure ensures consistent actuation force independent of working pressure (zero back-pressure interference), incorporating internal ring sealing for enhanced leak-tight performance and smooth directional switching;
5. Maintenance-free lubrication system eliminates requirement for oil replenishment;
6. Multiple mounting orientations enable flexible installation and operational convenience;
7. Metal actuator construction in M5C/M5D/M5Y/M5R/M5L series guarantees extended service life with reinforced reliability and operational stability.
Category: Mechanical Valves, Brand: AIRTAC, Series: M5PM
AirTAC M5PM21008G Mushroom Head Push Button Mechanical Valve Specifications
- Model: M5PM21008G
- Type: 3/2-way normally closed mechanical valve (manual reset)
- Port size: PT1/8 (M5×0.8 thread optional)
- Operating pressure range: 0.1–1.0 MPa
- Button type: Red mushroom head with yellow base (ISO-compliant emergency stop colors)
- Actuation force: 50N ±10%
- Body material: Glass fiber reinforced PBT (UL94 V-0 rated)
- Seal material: Oil-resistant NBR
- Temperature range: -20℃ to +80℃ (with intermittent peaks at 100℃)
- Protection rating: IP67 (dustproof and waterproof)
- Mechanical life: ≥100,000 cycles
- Installation: Panel mounting with 22mm cutout diameter
- Weight: 118g ±3%
- Dimensions: 50mm(D) × 50mm(H) × 43mm(protrusion height from panel)
- Contact configuration: SPDT electrical contacts (1NO + 1NC)
- Contact rating: 5A 250VAC (AC-15), 5A 24VDC (DC-13)
Emergency stop valve with positive-driven mechanical linkage, featuring twist-to-release reset mechanism for safety compliance. The dual-color design enables quick visual status identification. Integrated silver alloy contacts provide arc suppression for reliable switching. Sealed shaft design prevents liquid ingress in harsh environments.
Typical Applications:
- Production line emergency stop stations
- Injection molding machine safety systems
- Automated warehouse conveyor controls
- Food processing equipment safety circuits
- Elevator emergency shutdown systems
- Robotic cell safety interlocks
Installation guidelines:
Mount on panels 1–5mm thick using supplied M4×16 mounting screws.
Maintain minimum 25mm clearance behind panel for mechanical movement.
Test monthly by full depression and clockwise reset rotation.
Compliance: Meets ISO 13850 safety requirements for emergency stop devices.
Requires integration with Category 3/4 safety circuits per EN 954-1.
| Property | Property Value |
|---|---|
| sku | M5PM21008G |
| Position | 5 Ports 2 Position |
| Port Size | PT1/4 |
