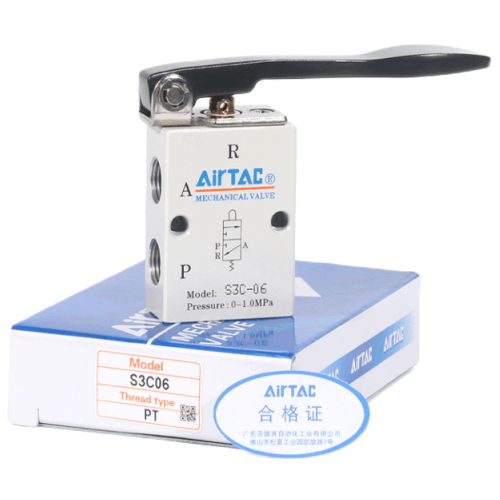

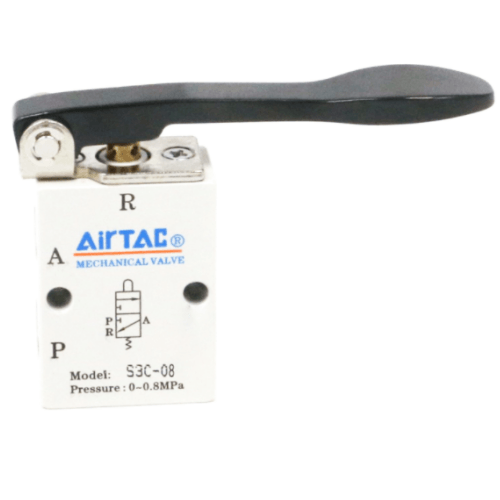

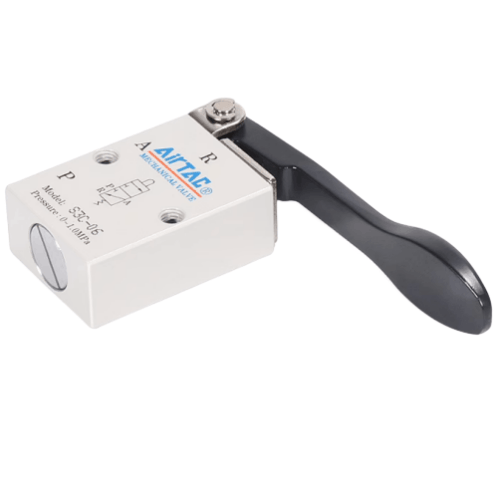

Airtac S3C Long Handle Type Mechanical Valve S3C08G
A cropped merino wool cardigan taken up a notch, thanks to the flecks of metallic thread throughout. We love it even more paired with the matching sweater-pants.
2. Manual-operated series including S3PF, S3PM, S3PP, S3PL, S3Y, S3HS, S3C, and S3D feature multiple structural configurations of actuator heads optimized for diverse application scenarios.
3. Poppet valve design ensures excellent sealing performance and responsive directional switching with maintenance-free lubrication.
4. Multi-position installation capability enables flexible mounting and simplified integration.
5. Metal construction of actuator heads in S3C, S3D, S3Y, S3R, and S3L series guarantees extended service life with superior reliability and stability.
Category: Mechanical Valves | Brand: AIRTAC | Series: S3C Long Lever Mechanical Valve
AirTAC S3C Long Handle Mechanical Valve S3C08G Technical Details
- Model: S3C08G (Long Handle Series)
- Valve type: 3-position selector valve (Mechanical actuation)
- Port configuration: 5 ports/3 positions
- Port thread size: PT1/4 (G1/4 available on request)
- Operating pressure range: 0.05–1.0 MPa
- Max flow rate: 750 L/min (ANR)
- Actuation force: 3.5N±0.5N at handle tip
- Handle rotation: 180° mechanical lock positions
- Body material: Aluminum alloy (hard anodized)
- Seal material: NBR/FKM optional
- Ambient temperature: -5℃ to 60℃ (NBR) / -20℃ to 80℃ (FKM)
- Weight: 480g ±5% (without accessories)
- Dimensions: 98mm(L) × 52mm(W) × 134mm(H)
- Mounting: Panel mounting with M5 screws (4 points)
- Response time: ≤50ms (full stroke)
- Life expectancy: 2 million cycles (NBR seals)
Industrial-grade manual override valve featuring ergonomic lever design with positive position feedback. The extended handle (120mm length) enables gloved operation in tight spaces, while the dual-color position indicator (green/red) provides clear status visibility. Compatible with ISO 15407-1 standards.
- Emergency override in automated production lines
- Manual control stations for pneumatic test benches
- Safety lockout systems in material handling equipment
- Process control in food packaging machinery (FKM version)
- Mobile hydraulic service units
Installation guidelines:
Apply thread sealant to port connections (PTFE tape not recommended).
Maintain minimum 30mm clearance below valve for handle operation.
Perform monthly lubrication of pivot points with silicone grease.
| Property | Property Value |
|---|---|
| sku | S3C08G |
| Position | 3-Port 2-Position |
| Port Size | PT1/4 |
