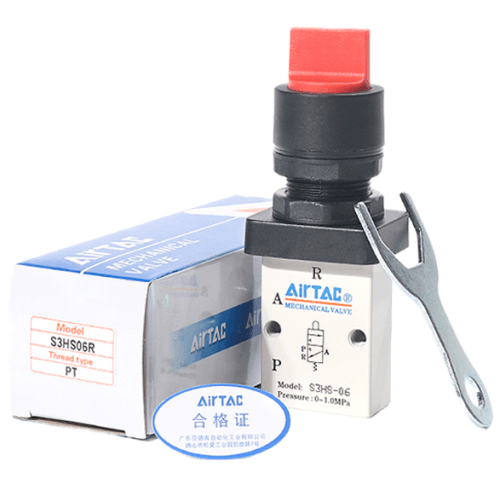

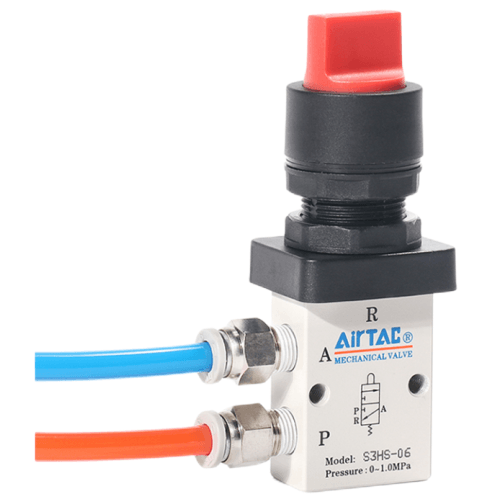

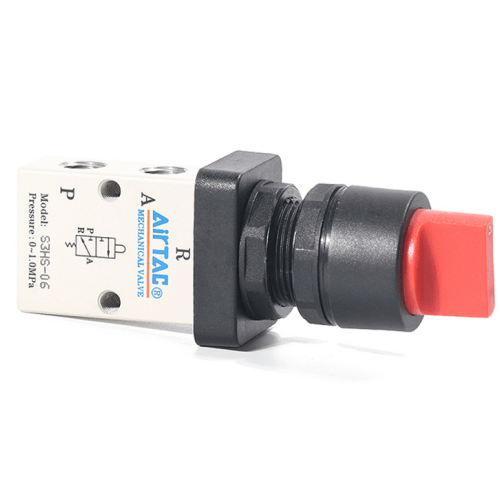

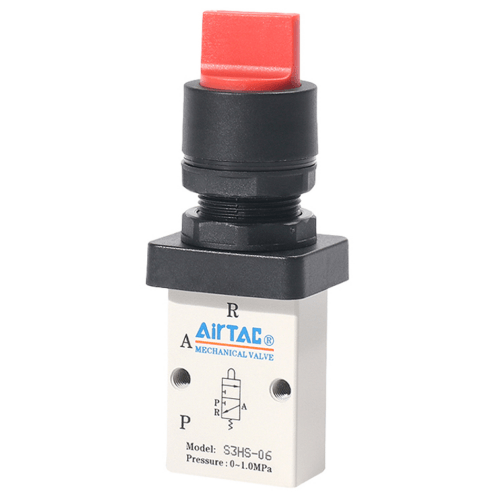

Airtac S3HS Selector Mechanical Valve S3HS05-P12A
2. S3PF, S3PM, S3PP, S3PL, S3Y, S3HS, S3C, and S3D series feature manual actuation with multiple structural configurations of control heads for enhanced adaptability across diverse application scenarios;
3. Poppet valve structure ensures excellent sealing performance, smooth directional switching, and maintenance-free operation without lubrication requirements;
4. Multi-position mounting capability facilitates flexible integration and simplified installation;
5. S3C, S3D, S3Y, S3R, and S3L series employ metal-constructed control heads for enhanced durability, reliability, and operational stability.
Category: Mechanical Valves , Brand: AIRTAC , Series: S3HS
AirTAC S3HS05-P12A Selector Mechanical Valve Specifications
- Model: S3HS05-P12A
- Type: 3-position selector valve (Left/Right/Neutral)
- Port configuration: 5 ports (P, A, B, R1, R2)
- Port size: PT1/4 (G1/4 optional)
- Operating pressure: 0.05–1.0 MPa
- Max flow rate: 1,200 NL/min
- Actuation force: ≤5 N (manual lever operation)
- Weight: 320g ±5g
- Dimensions: 56mm(W) × 40mm(H) × 105mm(L)
- Body material: Anodized aluminum alloy
- Seal material: Heat-resistant NBR (Nitrile)
- Temperature range: -10℃ to 80℃ (with dry air)
- Protection rating: IP54 (dust/water resistant)
- Mounting options: Panel mount with M4 screws
Manual override mechanical valve with precision detent mechanism for stable position holding. Features dual exhaust ports (R1/R2) for rapid cylinder retraction and anti-corrosion treatment for humid environments. Optimized flow path reduces pressure drop by 15% compared to previous generations.
- Production line emergency stop systems
- Material handling equipment direction control
- Plastic injection molding machine safety circuits
- Test bench pneumatic mode switching
- Food processing machinery (oil-resistant version available)
Maintenance note:
Lubricate pivot points with ISO VG32 pneumatic oil annually.
Ensure exhaust ports remain unobstructed - minimum 10mm clearance
from mounting surface required.
| Property | Property Value |
|---|---|
| sku | S3HS05-P12A |
| Position | Please provide the specific AirTAC product attribute values you need translated, and I will return the accurate English terminology. |
| Port Size | Please provide the specific AirTAC product attribute values you need translated, and I will return the accurate English terminology. |
