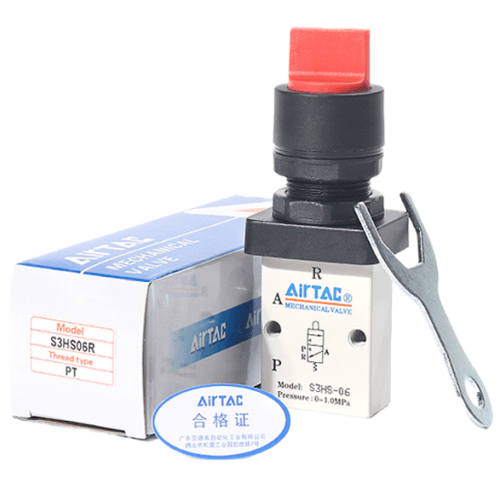

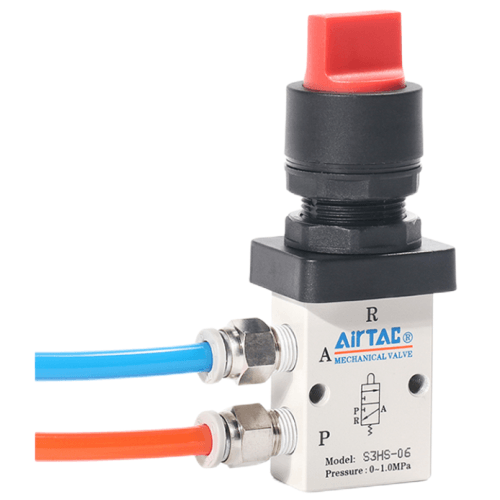

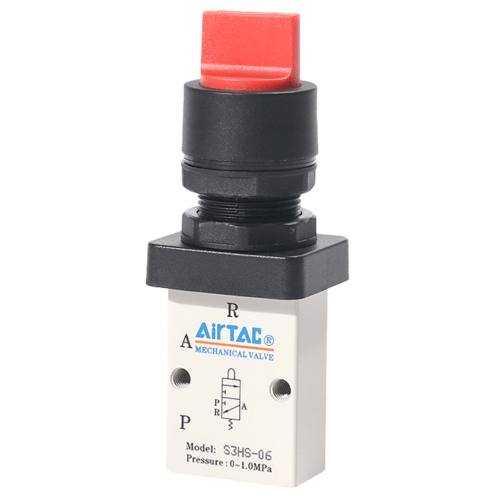

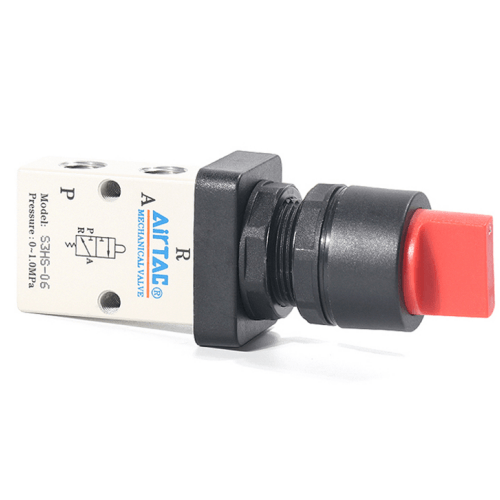

Airtac S3HS Selector Mechanical Valve S3HSM5G
2. S3PF, S3PM, S3PP, S3PL, S3Y, S3HS, S3C, and S3D series feature manual actuation with multiple structural configurations of control heads for enhanced adaptability across diverse application scenarios;
3. Poppet valve structure ensures excellent sealing performance, smooth directional switching, and maintenance-free operation without lubrication requirements;
4. Multi-position mounting capability facilitates flexible integration and simplified installation;
5. S3C, S3D, S3Y, S3R, and S3L series employ metal-constructed control heads for enhanced durability, reliability, and operational stability.
Category: Mechanical Valves , Brand: AIRTAC , Series: S3HS
AirTAC S3HSM5G Selector Mechanical Valve Technical Details
- Model: S3HSM5G (Selector Series)
- Type: 5/2-way mechanical valve with manual override
- Port size: PT1/4 (G1/8 optional)
- Operating pressure: 0.2–0.8 MPa (29–116 psi)
- Actuation force: 15N ±2N at lever end
- Flow capacity: 750 L/min (ANR)
- Weight: 300g ±5% (including accessories)
- Dimensions: 72mm(L) × 40mm(W) × 85mm(H)
- Body material: Anodized aluminum alloy
- Seal material: NBR/FKM optional
- Temperature range: -10℃ to 80℃ (14°F to 176°F)
- Response time: ≤50ms (full stroke)
- Mounting options: Panel mount with M5 screws or DIN rail
- Protection rating: IP65 (dust-tight & water jet resistant)
- Lubrication: Pre-lubricated (ISO VG32 equivalent)
Industrial-grade mechanical selector valve featuring positive detent positioning and dual-color position indicator (green/red). The hardened stainless steel shaft and dual-bearing design ensure 500,000+ cycle durability. Includes built-in silencer and shock-absorbing rubber pads. Compatible with ISO 15407-1 standards.
- Production line mode selection systems
- Emergency stop override in automated machinery
- Pneumatic circuit configuration switching
- Maintenance bypass control in HVAC systems
- Safety interlock override in press machines
Operation guidance:
Apply firm positive pressure before initial use to seat seals.
For vertical installations, use locking plate (accessory PN S3H-LK01).
Perform quarterly lubrication with AirTAC PX-4 grease.
| Property | Property Value |
|---|---|
| sku | S3HSM5G |
| Position | 3-Port 2-Position |
| Port Size | M5 |
