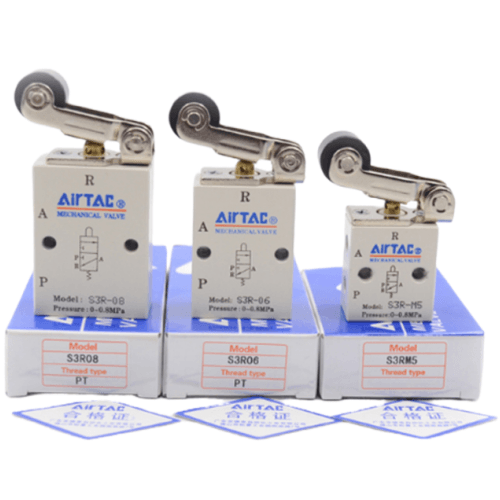

Airtac S3R Roller Lever Type Mechanical Valve S3R-06
2. The S3PF, S3PM, S3PP, S3PL, S3Y, S3HS, S3C, and S3D series feature manual actuation with diversified control head configurations to accommodate varied operating conditions.
3. Poppet-type design ensures excellent sealing performance, smooth switching operation, and maintenance-free lubrication.
4. Multi-position mounting options enable flexible installation and system integration.
5. S3C, S3D, S3Y, S3R, and S3L series incorporate metal control heads for extended service life, enhanced reliability, and operational stability.
Category: Mechanical Valves | Brand: AirTAC | Series: S3R Roller Lever Type

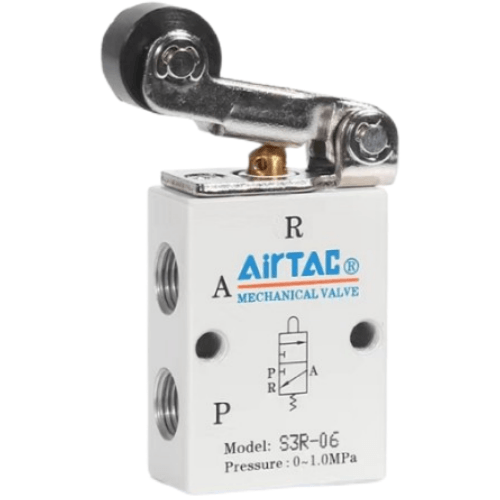

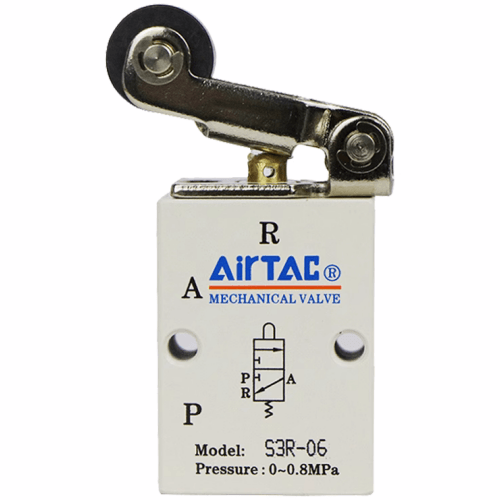

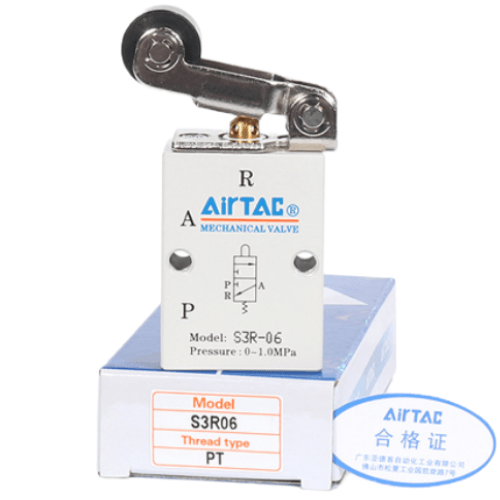

AirTAC S3R-06 Roller Lever Mechanical Valve Technical Details
- Model: S3R-06 (Roller Lever Type)
- Operation: Mechanical actuation via roller lever
- Port configuration: 3/2-way (Normally Closed)
- Port thread: PT1/8 (G1/8 optional)
- Operating pressure range: 0.1–0.8 MPa
- Max operating frequency: 5 cycles/sec
- Actuation force: ≤2.5N
- Lever stroke: 2.5±0.5mm
- Body material: Anodized aluminum alloy
- Seal material: Heat-resistant NBR (-20℃ to 120℃)
- Ambient temperature: -5℃ to 60℃ (with anti-freeze measures)
- Weight: 180±5g
- Dimensions: 54mm(L) × 38mm(W) × 72mm(H)
- Mounting: Direct piping or sub-base installation
- Lever rotation: 360° adjustable
Mechanically operated valve with precision roller lever mechanism, featuring dual-bearing pivot design for smooth actuation and extended service life. The chrome-plated roller reduces surface friction by 40% compared to standard models. Includes dust-resistant boot seal (IP54 rating) for harsh environments.
- Safety door interlocks in automated production lines
- Position sensing in material handling systems
- Emergency stop mechanisms for machinery guards
- Cartesian robot end effector controls
- Conveyor belt jam detection systems
Installation tip:
Adjust lever angle to maintain 1-2mm pre-travel before full actuation.
Lubricate pivot point with ISO VG32 hydraulic oil monthly in high-cycle applications.
| Property | Property Value |
|---|---|
| sku | S3R-06 |
| Position | 3-Port 2-Position |
| Port Size | PT1/8 |
