Airtac S3R Roller Lever Type Mechanical Valve S3R-08
2. The S3PF, S3PM, S3PP, S3PL, S3Y, S3HS, S3C, and S3D series feature manual actuation with diversified control head configurations to accommodate varied operating conditions.
3. Poppet-type design ensures excellent sealing performance, smooth switching operation, and maintenance-free lubrication.
4. Multi-position mounting options enable flexible installation and system integration.
5. S3C, S3D, S3Y, S3R, and S3L series incorporate metal control heads for extended service life, enhanced reliability, and operational stability.
Category: Mechanical Valves | Brand: AirTAC | Series: S3R Roller Lever Type

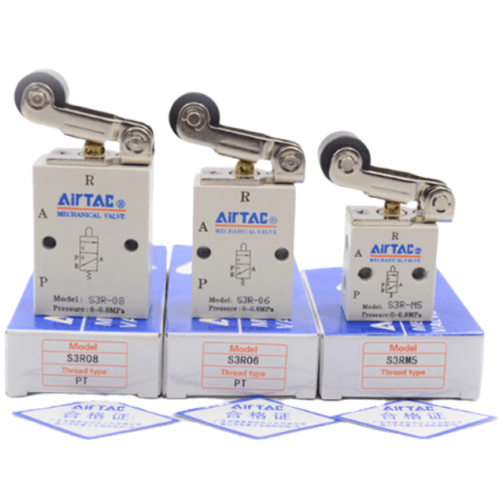

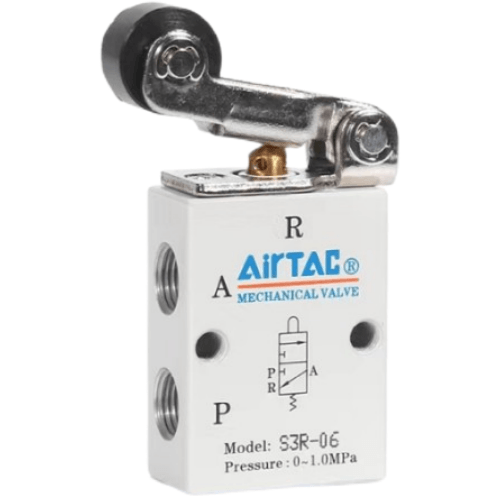

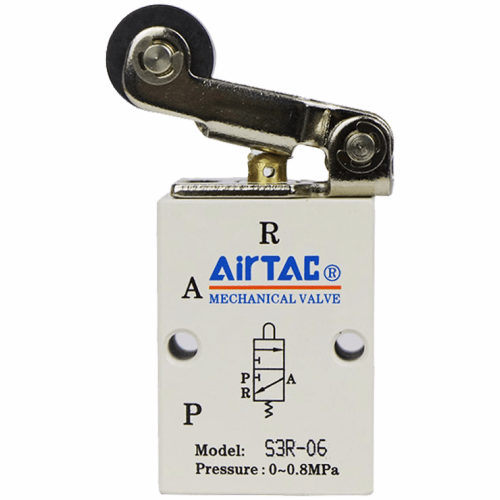

AirTAC S3R-08 Roller Lever Mechanical Valve Technical Details
- Model: S3R-08
- Type: 3/2-way normally closed (mechanical roller lever actuation)
- Port size: PT1/8 (M5×0.8 optional)
- Operating pressure: 0.15–0.8 MPa (21.7–116 PSI)
- Flow capacity: 450 NL/min (ANR)
- Valve body material: Aluminum alloy with hard anodized finish
- Seal material: NBR (Nitrile rubber)
- Lever stroke: 3mm ±0.5mm
- Operating temperature: -5℃ to 60℃ (23℉ to 140℉)
- Mounting style: Panel mount with M5×12 mounting screws
- Weight: 200g ±5g
- Dimensions: 54mm(L) × 32mm(W) × 32mm(H)
- Actuation force: 1.5N minimum for valve switching
- Compliance: ISO 15407-1 standard
Mechanically operated valve with roller-lever arm designed for position detection and pneumatic signal triggering in automated systems. Features zero power consumption operation and positive tactile feedback during actuation. The hardened stainless steel roller reduces wear during repeated contact with machine cams or workpieces.
- Position verification in linear actuator end-stops
- Carton box folding machine sequence control
- Conveyor belt package presence detection
- Textile machinery thread tension monitoring
- Safety interlock systems in press brakes
Installation guidelines:
Mount lever arm perpendicular to actuator motion path. Adjust roller position with
0.5-1mm pre-travel for reliable switching. Lubricate pivot point quarterly with
ISO VG32 hydraulic oil. Avoid lateral forces exceeding 5N on lever arm.
| Property | Property Value |
|---|---|
| sku | S3R-08 |
| Position | 3-Port 2-Position |
| Port Size | PT1/4 |
