Airtac S3R Roller Lever Type Mechanical Valve S3R-M5
$17.28
Regular price
$24.78
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
S3R-M5
Product type:
Collections:
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
1. The S3B, S3R, S3L, and S3V series require externally supplied actuation force from mechanisms for valve switching, ideal for position detection or limit switching applications.
2. The S3PF, S3PM, S3PP, S3PL, S3Y, S3HS, S3C, and S3D series feature manual actuation with diversified control head configurations to accommodate varied operating conditions.
3. Poppet-type design ensures excellent sealing performance, smooth switching operation, and maintenance-free lubrication.
4. Multi-position mounting options enable flexible installation and system integration.
5. S3C, S3D, S3Y, S3R, and S3L series incorporate metal control heads for extended service life, enhanced reliability, and operational stability.
Category: Mechanical Valves | Brand: AirTAC | Series: S3R Roller Lever Type
Installation guidelines:
Mount lever arm parallel to machine motion direction. Lubricate roller bearing
quarterly with ISO VG32 hydraulic oil. Maintain 2-3mm overtravel distance beyond
activation point for optimal longevity.
2. The S3PF, S3PM, S3PP, S3PL, S3Y, S3HS, S3C, and S3D series feature manual actuation with diversified control head configurations to accommodate varied operating conditions.
3. Poppet-type design ensures excellent sealing performance, smooth switching operation, and maintenance-free lubrication.
4. Multi-position mounting options enable flexible installation and system integration.
5. S3C, S3D, S3Y, S3R, and S3L series incorporate metal control heads for extended service life, enhanced reliability, and operational stability.
Category: Mechanical Valves | Brand: AirTAC | Series: S3R Roller Lever Type

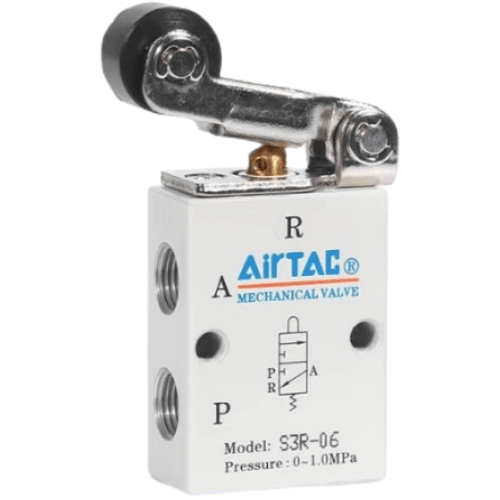

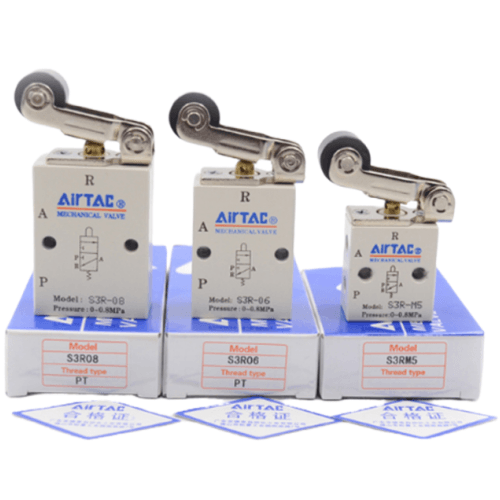

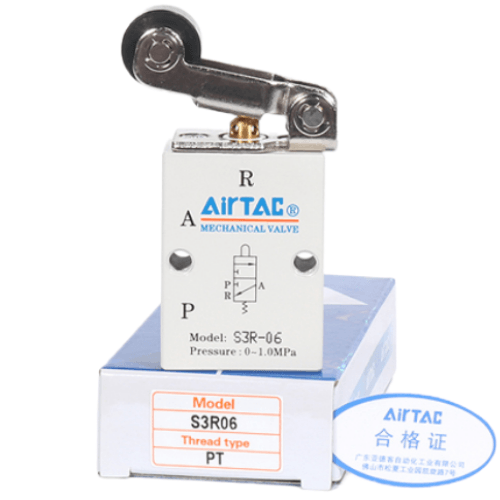

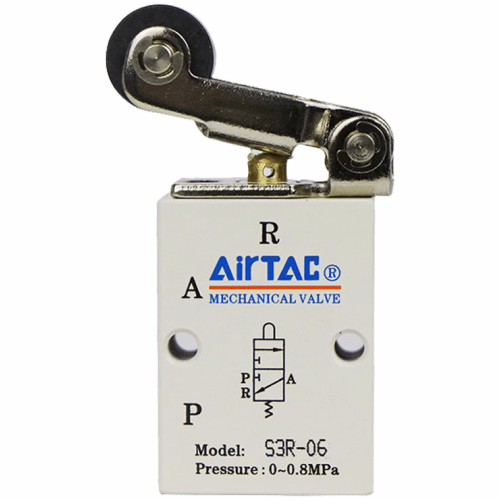

AirTAC S3R Roller Lever Mechanical Valve S3R-M5 Technical Details
- Model: S3R-M5 (Roller Lever Series)
- Valve type: 3/2-way normally closed mechanical valve
- Actuation method: Roller lever with 90° adjustable arm
- Port thread: M5×0.8 (ISO standard)
- Operating pressure: 0.05–1.0 MPa
- Max flow rate: 350 NL/min
- Lever force: 2.5N±0.5N activation force
- Body material: Anodized aluminum alloy (black oxidation)
- Seal material: Heat-resistant NBR (-10℃ to 100℃)
- Repeat accuracy: ±0.2mm
- Operating frequency: ≤5Hz
- Weight: 78g±2g
- Dimensions: 42mm(L) × 25mm(W) × 54mm(H)
- Mounting: M4 screw or 10mm rail clip
- Protection class: IP67 (dust/water resistant)
Compact mechanical valve with precision roller lever mechanism, featuring 360° adjustable actuation angle and wear-resistant chromium-plated roller. The optimized lever geometry ensures smooth operation over 5 million cycles. Includes built-in silencer and anti-vibration lock nut.
Ideal for:
- Position detection in linear actuator systems
- Safety interlocks on automated assembly lines
- Cartesian robot end effector tooling
- Conveyor belt package position verification
- Textile machinery thread break detection
Installation guidelines:
Mount lever arm parallel to machine motion direction. Lubricate roller bearing
quarterly with ISO VG32 hydraulic oil. Maintain 2-3mm overtravel distance beyond
activation point for optimal longevity.
Recommended pairing:
Works with AirTAC SDA/SCA series cylinders. Use SNS-M5 speed controller for flow
adjustment. Compatible with ISO 15407-1 pneumatic systems.
| Property | Property Value |
|---|---|
| sku | S3R-M5 |
| Position | 3-Port 2-Position |
| Port Size | M5 |
