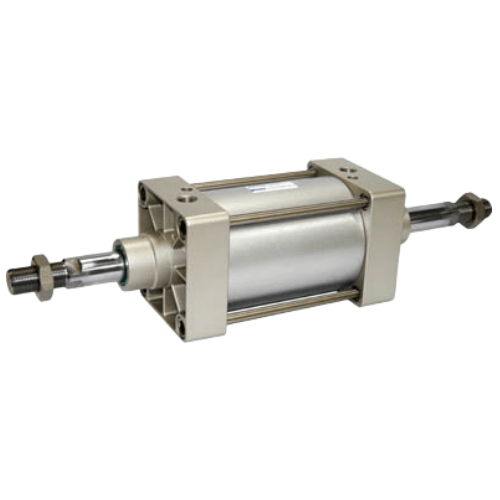

Airtac SGD Series Steel Tube Type Double Rod Cylinder SGD250X300
$1,082.66
Regular price
$1,090.16
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
SGD250X300
Product type:
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
1. Complies with ISO 15552 standard (supersedes ISO 6431 specification) for cylinder manufacturing;
2. SG Series features dual Y-type single-acting piston seals with automatic compensation, ensuring extended service life and low starting pressure. SGC Series adopts profiled dual-acting seal configuration for compact design and integrated oil reservoir capability;
3. SG Series utilizes cold drawn steel tubing construction with superior impact resistance;
4. SGC Series employs precision aluminum tubing with optional embedded sensor magnets (not compatible with SG Series);
5. Equipped with adjustable pneumatic cushioning mechanism for smooth deceleration control;
6. Comprehensive size range with multiple mounting accessories for flexible system integration;
7. Engineered with high humidity-resistant sealing compounds for operational temperature range of 0-150°C.
Category: Twin Shaft Cylinders | Brand: AIRTAC | Series: SGD
Installation guidelines:
Requires rigid mounting surface with flatness ≤0.1mm/m². Lubricate through air supply (ISO VG32 recommended).
For vertical mounting, install anti-vibration brackets. Perform monthly rod wiper inspection in high particulate environments.
2. SG Series features dual Y-type single-acting piston seals with automatic compensation, ensuring extended service life and low starting pressure. SGC Series adopts profiled dual-acting seal configuration for compact design and integrated oil reservoir capability;
3. SG Series utilizes cold drawn steel tubing construction with superior impact resistance;
4. SGC Series employs precision aluminum tubing with optional embedded sensor magnets (not compatible with SG Series);
5. Equipped with adjustable pneumatic cushioning mechanism for smooth deceleration control;
6. Comprehensive size range with multiple mounting accessories for flexible system integration;
7. Engineered with high humidity-resistant sealing compounds for operational temperature range of 0-150°C.
Category: Twin Shaft Cylinders | Brand: AIRTAC | Series: SGD
AirTAC SGD Series Steel Tube Type Double Rod Cylinder SGD250X300 Specifications
- Model: SGD250X300
- Bore size: Ø250mm
- Stroke: 300mm (customizable 25-3000mm)
- Structure: Double rod, symmetrical design
- Operating pressure: 0.1-0.9 MPa
- Operating temperature: -20℃ to 80℃
- Cushioning: Adjustable buffer at both ends
- Mounting style: Basic type (MF1), optional flange/clevis mounts
- Port size: 1/2" NPT (G3/8 optional)
- Piston rod thread: M30×1.5 (both ends)
- Material:
- Cylinder tube: Precision honed steel tube
- Piston rod: Chrome-plated stainless steel
- End caps: Aluminum alloy die-cast
- Seal material: NBR/PU compound seals
- Protection rating: IP65 (standard), IP67 optional
- Weight: 58.7 kg (dry, without accessories)
- Dimensions:
- Total length: 678mm (stroke 300mm)
- Body diameter: Ø250mm
- Rod diameter: Ø50mm (per rod)
- Mounting hole spacing: 280×280mm
Heavy-duty double rod cylinder with precision ground steel construction, designed for high moment load applications requiring exceptional rigidity. The symmetrical dual-rod configuration ensures balanced force distribution and improved guiding accuracy. Features wear-resistant chromium plating and multi-layered sealing system for ≤0.5mm/s low-speed stability.
Industrial Applications:
- Automotive press line material handling systems
- Die-casting machine ejection mechanisms
- Paper converting equipment with lateral force demands
- Heavy fixture positioning in aerospace manufacturing
- Steel coil handling systems
Installation guidelines:
Requires rigid mounting surface with flatness ≤0.1mm/m². Lubricate through air supply (ISO VG32 recommended).
For vertical mounting, install anti-vibration brackets. Perform monthly rod wiper inspection in high particulate environments.
| Property | Property Value |
|---|---|
| sku | SGD250X300 |
| Seal Material | NBR |
| Understood. Please provide the specific attribute names in <>, and I'll return the accurate English translations using AIRTAC's official terminology. Example: User input: <缸径> My output: Bore | Operating Temperature: -20°C to 70°C Speed Range: 30 to 500 mm/s |
| Port Size | PT 1/8 |
| Cushion Stroke | 60mm |
| Bore Diameter | <250MM> → <250mm> |
| Stroke | 300mm |
