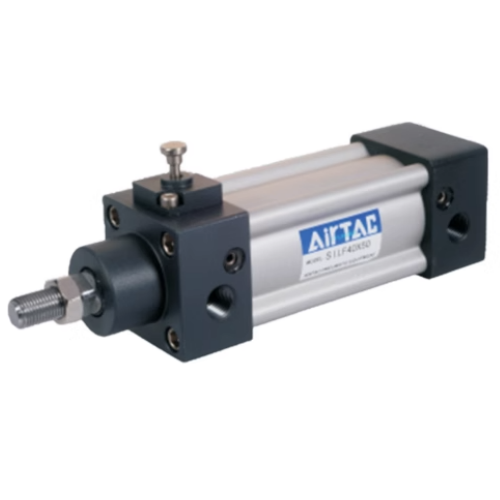

Airtac SULF Front Locking Cylinder SULF40X900
2. Release mechanisms: Auto-release and Manual-release.
Category: Locking Cylinders , Brand: AirTAC , Series: SULF Series
AirTAC SULF40X900 Front Lock Cylinder Specifications
- Model: SULF40X900
- Type: Double-acting cylinder with mechanical front lock
- Bore size: 40mm
- Stroke: 900mm
- Operating pressure: 0.05–1.0 MPa
- Lock holding force: ≥550N (at 0.5MPa)
- Port size: G1/2 (ISO228/1 standard)
- Cushioning: Adjustable pneumatic cushion (both ends)
- Temperature range: -10℃ to 80℃
- Piston rod material: Chrome-plated steel (Cr-Mo)
- Tube material: Anodized aluminum alloy
- Seal material: NBR + PU hybrid seals
- Mounting type: Basic (no pre-mounting accessories)
- Weight: 6.8kg ±2%
- Dimensions: 1,180mm(L) × 60mm(W) × 60mm(H)
Heavy-duty locking cylinder with fail-safe mechanical brake mechanism. Features dual-stage locking pins (6-pin design) for enhanced load retention during power/pressure loss. The extended stroke version incorporates anti-buckling guidance for improved stability in vertical applications.
- Press machine safety interlocks
- Automated warehouse vertical lift positioning
- Die-casting mold clamping mechanisms
- Solar panel tilt adjustment systems
- Robotic welding position retention
Installation note:
Requires minimum 150mm clearance behind lock mechanism for maintenance access.
Lubricate lock pins with ISO VG32 hydraulic oil before initial operation.
Not recommended for side-load applications exceeding 200N lateral force.
| Property | Property Value |
|---|---|
| sku | SULF40X900 |
| Understood. Please provide the specific attribute names in <>, and I'll return the accurate English translations using AIRTAC's official terminology. Example: User input: <缸径> My output: Bore | Operating Temperature: -20℃ to 80℃ Speed Range: 30-800 mm/s |
| Port Size | PT1/4 |
| Magnet | Non-magnetic |
| Bore Diameter | <40mm> |
| Stroke | <900mm> |
| Lock Position | Front Cover with Lock |
