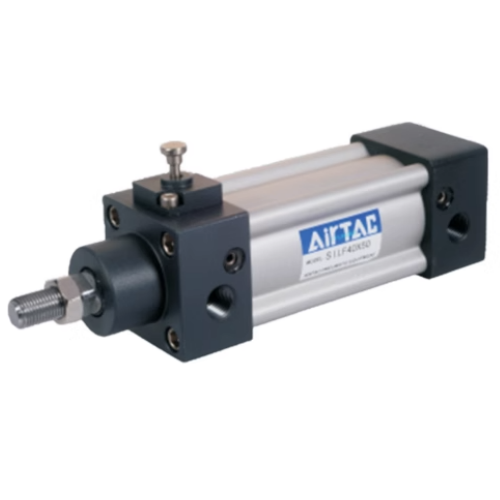

Airtac SULF Front Locking Cylinder SULF50X900
$164.00
Regular price
$171.50
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
SULF50X900
Product type:
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
1. Locking cylinder configurations include: Front-end locking type and Rear-end locking type;
2. Release mechanisms: Auto-release and Manual-release.
Category: Locking Cylinders , Brand: AirTAC , Series: SULF Series
Installation guidelines:
Lock engagement requires minimum 0.3 MPa air pressure. Lubricate through air supply (ISO VG32).
Avoid side loads exceeding 150N. Perform lock mechanism inspection every 500,000 cycles.
2. Release mechanisms: Auto-release and Manual-release.
Category: Locking Cylinders , Brand: AirTAC , Series: SULF Series
AirTAC SULF Front Lock Cylinder SULF50X900 Technical Details
- Model: SULF50X900
- Bore size: Ø50 mm
- Stroke: 900 mm
- Operation: Double-acting with mechanical lock
- Locking mechanism: Spring-activated wedge system
- Working pressure: 0.1–1.0 MPa
- Lock holding force: 3,200 N (at 0.5 MPa)
- Cushioning: Adjustable pneumatic cushion (both ends)
- Mounting type: Basic rear flange (ISO 15552 standard)
- Port size: G1/2 (NPT1/2 optional)
- Ambient temperature: -10℃ to 80℃
- Piston rod material: Hard chrome-plated steel
- Tube material: Anodized aluminum alloy
- Seal material: NBR + PU combination
- Protection rating: IP67 (dust/water resistant)
- Weight: 8.7 kg (with standard accessories)
- Dimensions:
- Extended length: 1,185 mm
- Retracted length: 285 mm
- Body diameter: 60 mm
- Mounting flange: 100×100 mm
Heavy-duty locking cylinder with fail-safe position retention capability. Features dual-stage sealing (dynamic and static) for leak prevention and integrated magnetic sensor grooves for position feedback. Requires 5-40μm filtered lubricated air (ISO 8573-1 class 3).
Industrial Applications:
- Press machine safety interlock systems
- Automotive welding fixture position retention
- Elevator emergency braking mechanisms
- Foundry equipment mold clamping
- Material handling vertical load locking
Installation guidelines:
Lock engagement requires minimum 0.3 MPa air pressure. Lubricate through air supply (ISO VG32).
Avoid side loads exceeding 150N. Perform lock mechanism inspection every 500,000 cycles.
| Property | Property Value |
|---|---|
| sku | SULF50X900 |
| Understood. Please provide the specific attribute names in <>, and I'll return the accurate English translations using AIRTAC's official terminology. Example: User input: <缸径> My output: Bore | Operating Temperature: -20℃ to 80℃ Speed Range: 30-800 mm/s |
| Port Size | PT1/4 |
| Magnet | Non-magnetic |
| Bore Diameter | <50mm> |
| Stroke | <900mm> |
| Lock Position | Front Cover with Lock |
