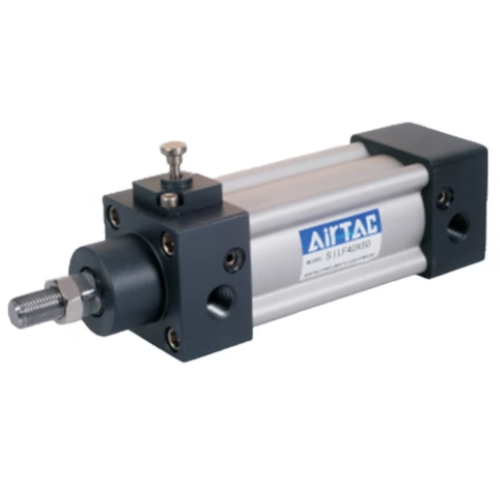

Airtac SULF Front Locking Cylinder SULF63X300
2. Release mechanisms: Auto-release and Manual-release.
Category: Locking Cylinders , Brand: AirTAC , Series: SULF Series
AirTAC SULF63X300 Front Lock Cylinder Specifications
- Model: SULF63X300
- Type: Double-acting cylinder with mechanical lock
- Bore size: 63mm
- Stroke: 300mm
- Operating pressure: 0.05–1.0 MPa
- Locking force: 1,800N (at 0.5MPa)
- Port size: G1/4 (NPT1/4 optional)
- Cushioning: Adjustable air cushion
- Ambient temperature: -20℃ to 80℃
- Piston material: High-strength aluminum alloy with hard anodizing
- Rod material: Chrome-plated steel (Cr-Mo)
- Seal material: NBR (Nitrile rubber)
- Protection rating: IP54 (standard), IP67 (optional)
- Weight: ~5.2kg (excluding accessories)
- Dimensions: 400mm(L) × 130mm(W) × 165mm(H) (retracted state)
Heavy-duty locking cylinder featuring dual safety mechanisms: spring-assisted mechanical lock and pneumatic interlock system. The hardened piston rod and triple-lip seal design ensure 500km+ service life under full load. Requires 5-40μm filtered air with lubrication (ISO VG32 recommended).
- Press machine safety clamping during mold changes
- Elevation platform position locking in logistics systems
- Robotic welding fixture position retention
- Die-casting machine core pulling mechanisms
- Automated warehouse vertical load stabilization
Installation note:
Lock engagement requires 0.3MPa minimum air pressure. For vertical mounting,
install manual release lever (optional accessory) for emergency override.
Allow 15mm clearance around cylinder body for heat dissipation.
| Property | Property Value |
|---|---|
| sku | SULF63X300 |
| Understood. Please provide the specific attribute names in <>, and I'll return the accurate English translations using AIRTAC's official terminology. Example: User input: <缸径> My output: Bore | Operating Temperature: -20℃ to 80℃ Speed Range: 30-800 mm/s |
| Port Size | PT3/8 |
| Magnet | Non-magnetic |
| Bore Diameter | 63mm |
| Stroke | 300mm |
| Lock Position | Front Cover with Lock |
