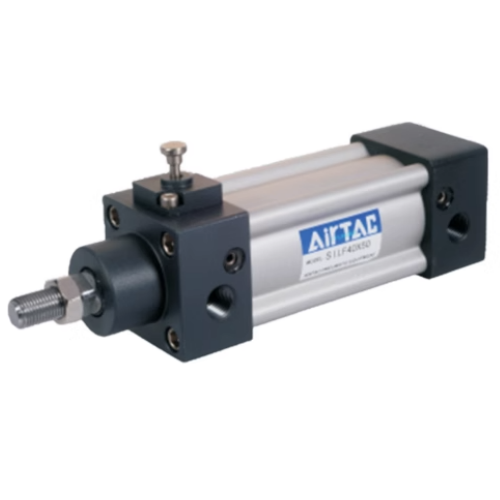

Airtac SULF Front Locking Cylinder SULF63X450S
2. Release mechanisms: Auto-release and Manual-release.
Category: Locking Cylinders , Brand: AirTAC , Series: SULF Series
AirTAC SULF63X450S Front Locking Cylinder Specifications
- Model: SULF63X450S
- Type: Double-acting cylinder with mechanical locking
- Bore size: 63 mm
- Stroke: 450 mm
- Operating pressure: 0.1–0.8 MPa (15–116 PSI)
- Cushioning: Adjustable pneumatic cushion
- Locking force: 1,200 N (at 0.5 MPa)
- Lock activation: Manual release button + automatic engagement
- Operating temperature: -20℃ to 80℃
- Material: Aluminum alloy barrel, hardened stainless steel piston rod
- Port size: 1/4" NPT (G1/4 optional)
- Weight: 5.2 kg (11.46 lbs)
- Dimensions: 630mm(L) × 105mm(W) × 105mm(H)
- Rod thread: M20×1.5 external thread
- Seal material: High-grade NBR with wear-resistant ring
- Protection rating: IP54 (standard), IP67 (optional)
Industrial-grade locking cylinder featuring fail-safe position retention with dual locking verification. The SULF series integrates a spring-applied brake mechanism that automatically engages when air pressure drops below 0.15 MPa. Precision ground rod surface (Ra ≤0.4μm) ensures smooth operation and extended seal life. Includes built-in magnetic sensor slot for position feedback.
- Vertical load holding in material handling systems
- Emergency stop positioning in automated assembly lines
- Safety interlocks in press machinery
- Position retention in tilt-adjust mechanisms
- Palletizing robot end-effector stabilization
Installation requirements:
Requires minimum 0.5 MPa air supply for proper lock disengagement.
Lubricate piston rod weekly with ISO VG32 hydraulic oil.
Maintain 0.3mm clearance around rod during alignment.
| Property | Property Value |
|---|---|
| sku | SULF63X450S |
| Understood. Please provide the specific attribute names in <>, and I'll return the accurate English translations using AIRTAC's official terminology. Example: User input: <缸径> My output: Bore | Operating Temperature: -20℃ to 80℃ Speed Range: 30-800 mm/s |
| Port Size | PT3/8 |
| Magnet | S-Magnetic |
| Bore Diameter | 63mm |
| Stroke | 450mm |
| Lock Position | Front Cover with Lock |
