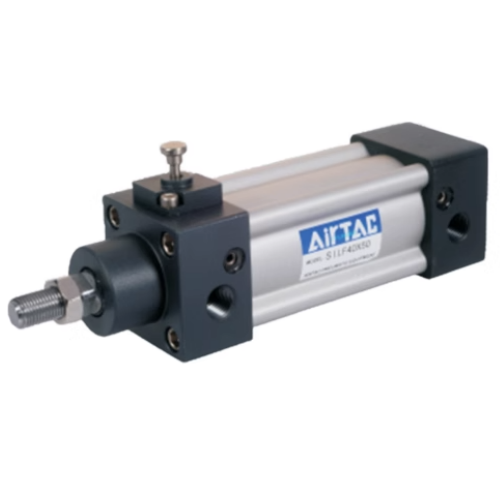

Airtac SULF Front Locking Cylinder SULF63X600
2. Release mechanisms: Auto-release and Manual-release.
Category: Locking Cylinders , Brand: AirTAC , Series: SULF Series
AirTAC SULF63X600 Front Locking Cylinder Specifications
- Model: SULF63X600
- Type: Double-acting with mechanical lock
- Bore size: 63mm
- Stroke: 600mm
- Operating pressure: 0.1–1.0 MPa
- Locking force: ≥450N (at 0.5MPa)
- Lock release pressure: 0.15–1.0 MPa
- Ambient temperature: -20℃ to 80℃
- Piston speed: 50–800mm/s
- Port size: G1/2 (NPT1/2 optional)
- Cushioning: Adjustable hydraulic buffer
- Rod material: Chrome-plated steel (S45C)
- Tube material: Anodized aluminum alloy
- Seals: NBR + PU hybrid seals
- Weight: 5.8kg ±2%
- Dimensions: 762mm(L) × 80mm(W) × 80mm(H)
- Mounting type: Basic (ISO 15552 standard)
- Protection class: IP54 (standard), IP67 (optional)
Heavy-duty locking cylinder with fail-safe mechanical brake mechanism, featuring dual-position memory function and anti-vibration design. The integrated lock engages automatically during power loss or emergency stop scenarios. Requires ISO VG32 hydraulic oil for cushioning adjustment (pre-lubricated).
- Automated welding positioners requiring mid-stroke hold
- Material handling vertical load locking
- Die-casting machine safety brakes
- Elevator emergency stop systems
- Robotic arm position retention during power failure
Installation note:
Locking mechanism requires periodic maintenance (clean with non-residue solvent every 500k cycles).
Ensure 0.3-0.5mm clearance between lock unit and mounting surface.
Use only dry filtered air with 5-40μm filtration.
| Property | Property Value |
|---|---|
| sku | SULF63X600 |
| Understood. Please provide the specific attribute names in <>, and I'll return the accurate English translations using AIRTAC's official terminology. Example: User input: <缸径> My output: Bore | Operating Temperature: -20℃ to 80℃ Speed Range: 30-800 mm/s |
| Port Size | PT3/8 |
| Magnet | Non-magnetic |
| Bore Diameter | 63mm |
| Stroke | 600mm |
| Lock Position | Front Cover with Lock |
