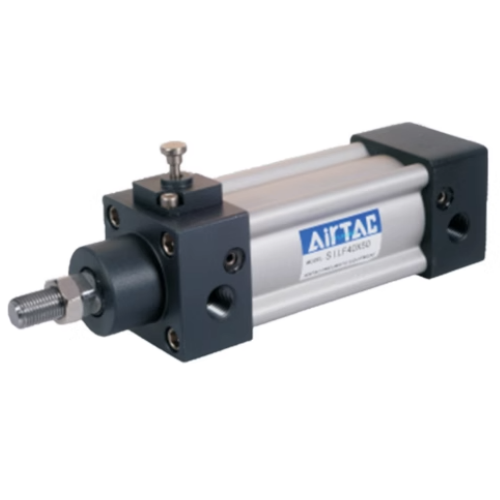

Airtac SULF Front Locking Cylinder SULF63X600S
2. Release mechanisms: Auto-release and Manual-release.
Category: Locking Cylinders , Brand: AirTAC , Series: SULF Series
AirTAC SULF63X600S Front Lock Cylinder Specifications
- Model: SULF63X600S
- Type: Double-acting with mechanical lock
- Bore size: 63mm
- Stroke: 600mm
- Operating pressure: 0.05–0.8 MPa
- Cushioning: Adjustable air cushion (both ends)
- Locking force: 1,200N (max)
- Port size: M5x0.8 (G1/8 equivalent flow)
- Mounting type: Basic fixed (MF1)
- Operating temperature: -20℃ to 80℃
- Rod material: Chrome-plated steel (H5 tolerance)
- Cylinder tube: Aluminum alloy with hard anodizing
- Seal material: NBR + PU combination
- Weight: 7.5kg (±3%)
- Dimensions: 818mm(L) × 80mm(W) × 80mm(H) (extended)
- Retracted length: 218mm
- Lock release pressure: ≥0.3 MPa
- Protection rating: IP54 (standard)
Heavy-duty locking cylinder with fail-safe position retention capability. Features dual-position mechanical locking mechanism activated by air pressure release, providing zero drift stability. Precision honed tube with wear-resistant coating ensures 2,000km+ service life under full load. Includes magnetic piston for position sensing compatibility.
- Press machine safety interlock systems
- Automated welding positioners
- Elevator braking mechanisms
- Material handling vertical load locks
- Robotic arm emergency stop positioning
Installation note:
Lock mechanism requires 0.5MPa minimum air pressure for disengagement.
Lubricate guide shafts monthly with ISO VG32 hydraulic oil.
Avoid side load exceeding 10% of maximum thrust capacity.
| Property | Property Value |
|---|---|
| sku | SULF63X600S |
| Understood. Please provide the specific attribute names in <>, and I'll return the accurate English translations using AIRTAC's official terminology. Example: User input: <缸径> My output: Bore | Operating Temperature: -20℃ to 80℃ Speed Range: 30-800 mm/s |
| Port Size | PT3/8 |
| Magnet | S-Magnetic |
| Bore Diameter | 63mm |
| Stroke | 600mm |
| Lock Position | Front Cover with Lock |
