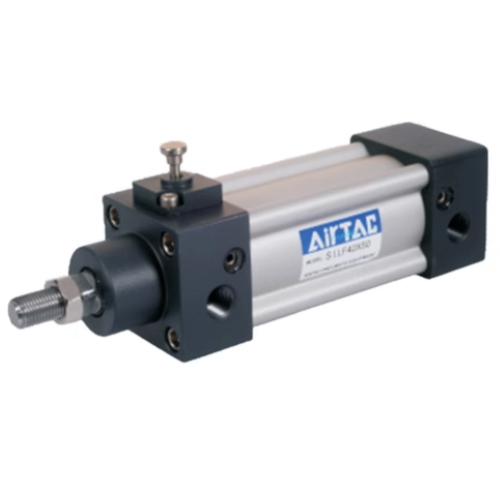

Airtac SULF Front Locking Cylinder SULF63X900S
2. Release mechanisms: Auto-release and Manual-release.
Category: Locking Cylinders , Brand: AirTAC , Series: SULF Series
AirTAC SULF Front Lock Cylinder SULF63X900S Technical Details
- Model: SULF63X900S
- Bore size: Ø63mm
- Stroke: 900mm
- Operating pressure: 0.05–1.0 MPa
- Locking mechanism: Mechanical wedge-type brake (front position)
- Lock holding force: 2,500N (at 0.5MPa)
- Cushioning: Adjustable air cushion (both ends)
- Mounting type: Basic (no foot) with standard accessory holes
- Port size: PT1/4 (G1/4 optional)
- Ambient temperature: -20℃ to 80℃
- Piston material: Aluminum alloy with hard anodizing
- Rod material: Chrome-plated steel (Cr-Mo)
- Seal material: NBR (nitrile rubber)
- Weight: ~12.5kg (including accessories)
- Dimensions: 1,080mm(L) × 98mm(W) × 98mm(H)
Heavy-duty locking cylinder with fail-safe position retention capability. Features dual-position magnetic sensor slots (non-contact type) and integrated shock absorption. The front-mounted mechanical brake activates automatically during power loss, making it ideal for vertical applications requiring mid-stroke position holding. Requires filtered air (5-50μm) with lubrication (ISO VG32 recommended).
- Automated welding fixture position locking
- Elevator emergency stop systems
- Press machine slide unit stabilization
- Material handling vertical lift brakes
- Robotic arm overload protection
Installation guidelines:
Maintain horizontal orientation for optimal brake performance.
Allow minimum 150mm clearance at rod end for maintenance access.
Brake release requires 0.3MPa minimum air pressure.
Lubricate through air supply (oil mist type) weekly under continuous operation.
| Property | Property Value |
|---|---|
| sku | SULF63X900S |
| Understood. Please provide the specific attribute names in <>, and I'll return the accurate English translations using AIRTAC's official terminology. Example: User input: <缸径> My output: Bore | Operating Temperature: -20℃ to 80℃ Speed Range: 30-800 mm/s |
| Port Size | PT3/8 |
| Magnet | S-Magnetic |
| Bore Diameter | 63mm |
| Stroke | <900mm> |
| Lock Position | Front Cover with Lock |
