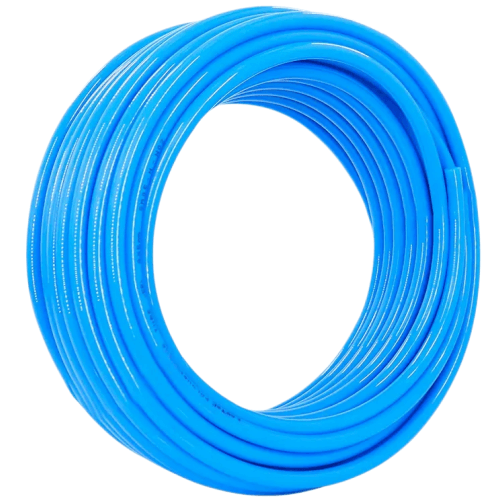

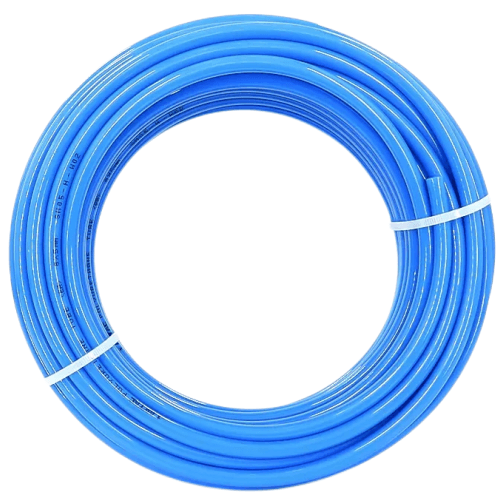

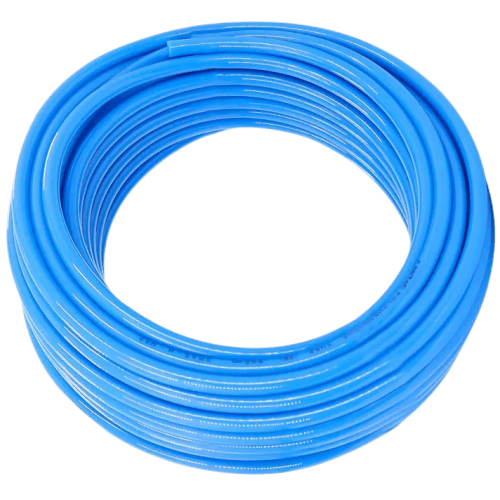

Airtac UE95A PU Pneumatic Hose UE95A040025200MCE
$72.08
Regular price
$79.58
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
UE95A040025200MCE
Product type:
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
1、Thermoplastic Polyurethane (TPU) material, ROHS-compliant environmental standards;
2、High elasticity: Minimal bending radius enables tight-space routing;
3、Anti-kinking properties: Superior resistance to coiling compared to conventional plastic tubes;
4、Exceptional shape memory: Withstands repeated expansion/contraction cycles;
5、Abrasion resistance: Extended service life in wear-prone environments;
6、Low gas permeability: Reduces leakage and contamination risks;
7、Excellent solvent resistance: Eliminates environmental pollution from fluid migration;
8、Minimal compression set: Maintains critical physical properties under load;
9、Media compatibility: Air/Water.
Category: Compressed Air Tubing , Brand: Airtac , Series: UE95A
Installation guide: Maintain 1.5×OD clearance from heat sources. Use spring guards in high-abrasion areas.
For 25m runs, install drip loops every 5m to prevent condensation pooling. Compatible with PK-4M quick connectors.
2、High elasticity: Minimal bending radius enables tight-space routing;
3、Anti-kinking properties: Superior resistance to coiling compared to conventional plastic tubes;
4、Exceptional shape memory: Withstands repeated expansion/contraction cycles;
5、Abrasion resistance: Extended service life in wear-prone environments;
6、Low gas permeability: Reduces leakage and contamination risks;
7、Excellent solvent resistance: Eliminates environmental pollution from fluid migration;
8、Minimal compression set: Maintains critical physical properties under load;
9、Media compatibility: Air/Water.
Category: Compressed Air Tubing , Brand: Airtac , Series: UE95A
AirTAC UE95A040025200MCE PU Pneumatic Hose Specifications
- Model: UE95A040025200MCE
- Material: Polyurethane (PU) with textile reinforcement
- Inner diameter: 4.0 mm ±0.2 mm
- Outer diameter: 6.0 mm ±0.3 mm
- Standard length: 25 meters/roll
- Burst pressure: ≥3.0 MPa
- Working pressure: 0-0.8 MPa (max continuous)
- Temperature range: -20℃ to +60℃ (instantaneous peak 80℃)
- Bend radius: 20 mm (minimum dynamic)
- Tensile strength: ≥15 N/mm²
- Color: Medium blue (RAL 5015)
- Weight: 1.35 kg/roll (±5%)
- Package dimensions: Ø300 mm × 150 mm (coiled spool)
- Certification: RoHS compliant, REACH SVHC-free
- Oil resistance: Compatible with ISO VG32 hydraulic oils
Flexible polyurethane hose with 2-layer spiral reinforcement, combining kink resistance and ultra-low compression set. Features smooth inner bore for optimized airflow (≤0.15 bar pressure drop at 500 L/min). UV-stabilized for occasional outdoor use.
Typical Applications:
- Robotic end-effector pneumatic connections
- CNC machine tool coolant line integration
- Pharmaceutical blister packaging machines
- Mobile agricultural sprayer controls
- 3D printer air-assisted extrusion systems
Installation guide: Maintain 1.5×OD clearance from heat sources. Use spring guards in high-abrasion areas.
For 25m runs, install drip loops every 5m to prevent condensation pooling. Compatible with PK-4M quick connectors.
| Property | Property Value |
|---|---|
| sku | UE95A040025200MCE |
| Inner Diameter | <2.5 mm> |
| Wall Thickness | <0.75 mm> |
| Outer Diameter | 4.0mm |
| Understood. Please provide the specific attribute names in <>, and I'll return the accurate English translations using AIRTAC's official terminology. Example: User input: <缸径> My output: Bore | Operating Temperature (°C): -40 to 70 |
| Bend Radius | <8mm> |
| Length per Roll | 200mm |
| Color | Transparent Orange |
