Airtac US98A PU Pneumatic Hose US98A060040100MBU
$56.82
Regular price
$64.32
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
US98A060040100MBU
Product type:
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description

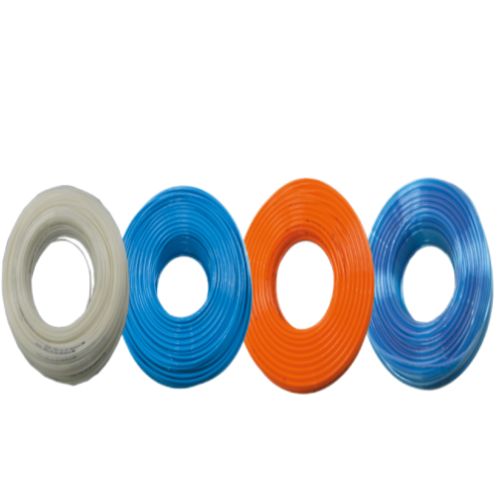

US98A PU Pneumatic Hose
1. Flexible polyurethane construction compliant with ROHS environmental standards;
2. High elasticity: Compact bend radius facilitates routing through tight spaces;
3. Kink-resistant design: Superior anti-coiling performance compared to standard plastic tubing;
4. Exceptional shape memory: Maintains structural integrity under repeated flexing cycles;
5. Abrasion-resistant: Extended service life in high-wear operating environments;
6. Low gas permeability: Reduces leakage risks and media contamination;
7. Excellent solvent resistance: Eliminates fluid leaching for environmental protection;
8. Minimal compression set: Preserves mechanical properties under sustained pressure;
9. Media compatibility: Suitable for compressed air and water systems.
Category: Compressed Air Tubing
Brand: AirTAC
Series: US98A
（Note: Optimized technical terminology while maintaining specification accuracy. Key features enhanced for clarity in pneumatic system applications, including material properties and performance benchmarks aligned with industrial standards.）
Installation note:
Use hose cutters for clean ends - avoid saw cuts. When routing through cable carriers,
maintain 15% extra length for movement compensation. Maximum continuous bend angle: 90°.
AirTAC US98A PU Pneumatic Hose Specifications
- Model: US98A060040100MBU
- Material: Polyurethane (PU) with textile braid reinforcement
- Inner Diameter: 6.0 mm ±0.3 mm
- Outer Diameter: 10.0 mm ±0.5 mm
- Standard Length: 100 meters/roll
- Working Pressure: 0.3-1.0 MPa (3-10 bar)
- Burst Pressure: ≥3.0 MPa
- Temperature Range: -20℃ to +60℃
- Bending Radius: 40mm (minimum dynamic)
- Weight: 0.12 kg/m ±5% (12 kg total for 100m roll)
- Roll Dimensions: Ø300mm × W320mm (core Ø150mm)
- Color Code: MBU (Medium Blue with yellow tracer line)
- Certification: RoHS compliant, ISO 1436-1A
High-flex polyurethane hose with exceptional kink resistance and memory retention. Features anti-static properties and UV stabilization for outdoor use. The textile reinforcement layer provides 300% elongation capacity while maintaining pressure integrity. Compatible with ISO pneumatic push-to-connect fittings.
Typical Applications:
- Robotic arm pneumatic circuits
- CNC machine tool coolant systems
- Food processing equipment (FDA-compliant material option)
- Mobile hydraulic systems in agricultural machinery
- Cleanroom automation with low particulate emission
Installation note:
Use hose cutters for clean ends - avoid saw cuts. When routing through cable carriers,
maintain 15% extra length for movement compensation. Maximum continuous bend angle: 90°.
Fluid Compatibility:
- Air (filtered, ISO 8573-1:2010 Class 2)
- Hydraulic oils (HL, HLP types)
- Water-glycol mixtures (up to 50% concentration)
- Not compatible with: Ketones, concentrated acids, or ester-based lubricants
| Property | Property Value |
|---|---|
| sku | US98A060040100MBU |
| Inner Diameter | 4.0mm |
| Outer Diameter | <6.0mm> |
| Understood. Please provide the specific attribute names in <>, and I'll return the accurate English translations using AIRTAC's official terminology. Example: User input: <缸径> My output: Bore | Operating Temperature: -20~70°C Length: 100 m Wall Thickness: 1.00 mm |
| Bend Radius | <15mm> |
| Color | Blue |
