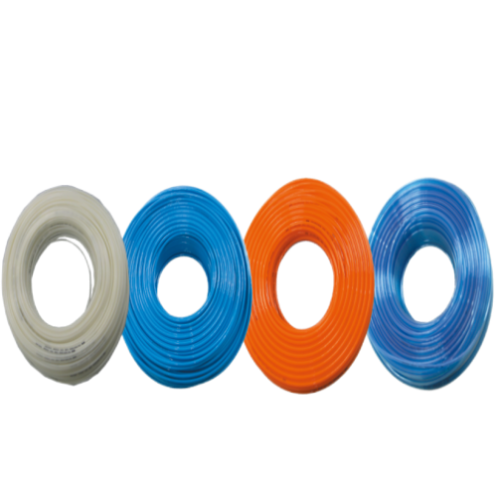

Airtac US98A PU Pneumatic Hose US98A160120100MCR
AirTAC US98A PU Pneumatic Hose US98A160120100MCR Technical Details
- Full model number: US98A160120100MCR
- Material: Polyurethane (PU) with textile reinforcement
- Inner diameter: 16mm ±0.3mm
- Outer diameter: 20mm ±0.5mm
- Working pressure: 0.8MPa (116psi) max @ 20℃
- Burst pressure: ≥3.2MPa (464psi)
- Temperature range: -20℃ to +60℃ (continuous use)
- Bend radius: 80mm minimum (cold condition)
- Color: Standard black with blue tracer line
- Length per coil: 100 meters (standard supply)
- Weight: 340g/m ±5%
- Dimensions (coil): 600mm diameter × 300mm width
- Certifications: RoHS compliant, REACH SVHC-free
- Oil resistance: Withstands ISO VG32 hydraulic oil
- Abrasion resistance: 50,000+ cycles (DIN 53516 test)
High-flex polyurethane air hose featuring exceptional kink resistance and memory-free coiling. The blue tracer line enables quick visual identification of pneumatic circuits. Reinforced with high-tensile polyester yarn for reduced pressure drop during extended runs.
- Automated assembly line manifolds
- CNC machine tool pneumatic networks
- Food processing equipment (FDA-compliant material)
- Mobile hydraulic systems in cleanrooms
- Plastic injection molding machine air lines
Installation guidance:
Use spring guards at connection points for strain relief. Maintain 1.5×OD clearance from heat sources.
For cold environments below 0℃, precondition coils at 25℃ for 2hrs before unspooling.
Not recommended for:
- Permanent outdoor UV exposure (requires protective sleeve)
- Chemical contact with esters/ketones
- High-pressure abrasive media transfer
| Property | Property Value |
|---|---|
| sku | US98A160120100MCR |
| Inner Diameter | 12.0mm |
| Outer Diameter | 16.0mm |
| Understood. Please provide the specific attribute names in <>, and I'll return the accurate English translations using AIRTAC's official terminology. Example: User input: <缸径> My output: Bore | Operating Temperature: -20 - 70°C Length: 100 m Wall Thickness: 2.00 mm |
| Bend Radius | 80 mm |
| Color | Transparent Red |
