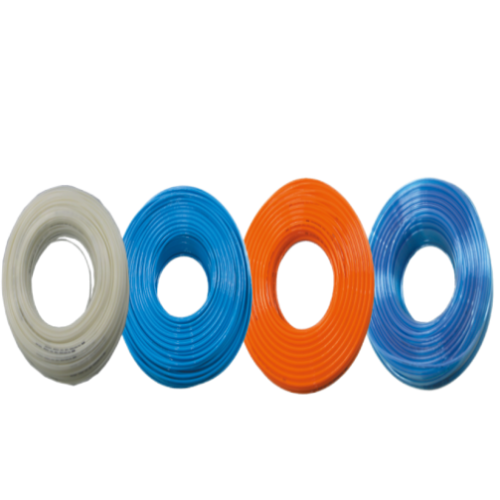

Airtac US98A PU Pneumatic Hose US98A160120100MGN
$297.60
Regular price
$305.10
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
US98A160120100MGN
Product type:
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
US98A PU Pneumatic Hose
1. Flexible polyurethane construction compliant with ROHS environmental standards;
2. High elasticity: Compact bend radius facilitates routing through tight spaces;
3. Kink-resistant design: Superior anti-coiling performance compared to standard plastic tubing;
4. Exceptional shape memory: Maintains structural integrity under repeated flexing cycles;
5. Abrasion-resistant: Extended service life in high-wear operating environments;
6. Low gas permeability: Reduces leakage risks and media contamination;
7. Excellent solvent resistance: Eliminates fluid leaching for environmental protection;
8. Minimal compression set: Preserves mechanical properties under sustained pressure;
9. Media compatibility: Suitable for compressed air and water systems.
Category: Compressed Air Tubing
Brand: AirTAC
Series: US98A
（Note: Optimized technical terminology while maintaining specification accuracy. Key features enhanced for clarity in pneumatic system applications, including material properties and performance benchmarks aligned with industrial standards.）
Installation guidelines:
Maintain 1.5×OD clearance from heat sources. Use hose cutters for clean ends
and install protective sleeves when routing through metal brackets.
Maximum continuous bend angle: 90° with 8×ID radius.
AirTAC US98A PU Pneumatic Hose Specifications
- Full Model: US98A160120100MGN
- Material: Polyurethane (PU) with fiber braiding reinforcement
- Inner Diameter: 12.0 mm ±0.3 mm
- Outer Diameter: 16.0 mm ±0.5 mm
- Standard Length: 10 meters (customizable up to 100m)
- Burst Pressure: ≥12 MPa (1740 psi)
- Working Pressure: 0.3-1.0 MPa (43.5-145 psi)
- Temperature Range: -40℃ to +80℃ (instantaneous peak 100℃)
- Bend Radius: ≥80mm (recommended minimum)
- Weight: 1.25 kg/meter ±5%
- Coil Dimensions: Ø300mm × W150mm (standard packaging)
- Color: Blue RAL 5015 with black tracer line
- Certifications: RoHS compliant, REACH SVHC-free
Flexible yet durable polyurethane hose with spiral reinforcement, designed for high-pressure pneumatic systems requiring kink resistance. Features excellent abrasion resistance (ISO 6945: 8.5N/mm²) and low gas permeability. Compatible with ISO 1436-1 standard fittings.
Typical Applications:
- Robotic arm end-effector pneumatic circuits
- CNC machine tool coolant-free environments
- Food processing equipment (FDA-compliant material option available)
- Mobile hydraulic systems in construction machinery
- High-cycle automation lines with frequent movement
Installation guidelines:
Maintain 1.5×OD clearance from heat sources. Use hose cutters for clean ends
and install protective sleeves when routing through metal brackets.
Maximum continuous bend angle: 90° with 8×ID radius.
Compatibility:
Resistant to hydraulic oils (H, HL, HM types), water glycol, and synthetic esters.
Not recommended for phosphate ester fluids or strong acids.
| Property | Property Value |
|---|---|
| sku | US98A160120100MGN |
| Inner Diameter | 12.0mm |
| Outer Diameter | 16.0mm |
| Understood. Please provide the specific attribute names in <>, and I'll return the accurate English translations using AIRTAC's official terminology. Example: User input: <缸径> My output: Bore | Operating Temperature: -20 - 70°C Length: 100 m Wall Thickness: 2.00 mm |
| Bend Radius | 80 mm |
| Color | Green |
