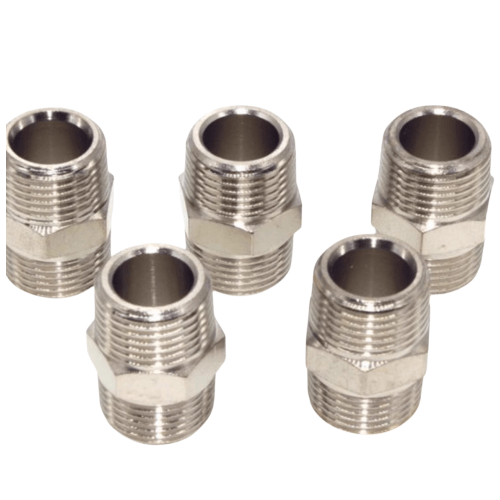

Airtac X-ABB Adapter - Double Male Thread Straight X-ABB0101
AirTAC X-ABB0101 Double Male Thread Straight Fitting Technical Details
- Model: X-ABB0101
- Type: Double external thread straight through connector
- Thread specification: M5×0.8 (male to male)
- Material: Brass with nickel plating
- Seal material: NBR (Nitrile rubber)
- Max working pressure: 1.5 MPa (217 psi)
- Proof pressure: 3.0 MPa
- Burst pressure: 6.0 MPa
- Temperature range: -20℃ to 80℃ (-4°F to 176°F)
- Port size: 4.5mm internal diameter
- Surface hardness: HV0.3 ≥130 (nickel plating layer)
- Weight: 12g ±0.5g
- Dimensions: 20mm(L) × 8mm(Dia.) × 8mm(Thread length)
- Fluid compatibility: Air, inert gases
- Vibration resistance: 10-55Hz, 1.5mm amplitude
- Certification: ISO 9001, RoHS compliant
Precision-machined pneumatic connector featuring dual M5×0.8 male threads with leak-proof design. The electroless nickel coating provides enhanced corrosion resistance against moisture and industrial atmospheres. Optimized flow path reduces pressure drop by 18% compared to standard fittings.
- Connect pneumatic components with male threads in confined spaces
- Extend or bridge between sensors and actuators
- Ideal for modular pneumatic systems requiring frequent reconfiguration
- Common in SMC valve terminal connections
- Used in semiconductor equipment cooling lines
Mounting guidance:
Apply 0.5-0.8 N·m torque during installation. Use thread sealant (LOCTITE 545) or PTFE tape.
Avoid cross-threading by hand-tightening 2-3 turns before final torque application.
Maximum angular misalignment tolerance: 3°.
