Airtac X-ABB Adapter - Double Male Thread Straight X-ABB0102

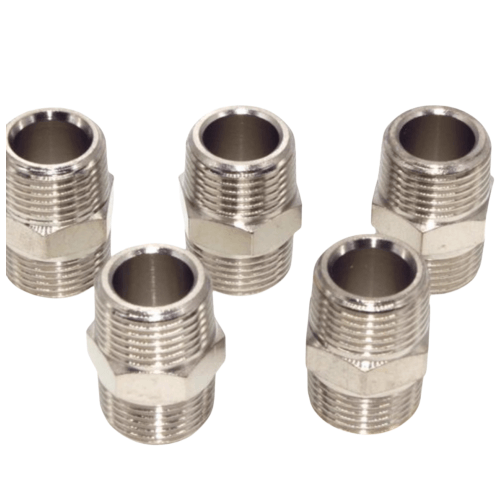

AirTAC X-ABB0102 Double Male Thread Straight Connector Specifications
- Model: X-ABB0102
- Type: Double male threaded straight-through fitting
- Thread standard: G1/8 (Parallel thread ISO228-1)
- Material: Nickel-plated brass (CuZn39Pb3)
- Surface hardness: ≥HV200
- Pressure rating: 0-1.0 MPa (145 psi)
- Burst pressure: ≥3.0 MPa
- Temperature range: -20℃ to 80℃ (-4°F to 176°F)
- Torque resistance: ≤15 N·m
- Seal type: Metal-to-metal seal (no O-ring required)
- Weight: 28±2g
- Dimensions: 50mm(L) × 8mm(Dia) × 8mm(Thread length)
- Surface roughness: Ra≤1.6μm
- Corrosion resistance: 96hrs neutral salt spray test passed
Precision-machined pneumatic connector with dual male threads, designed for direct inline piping connections in high-vibration environments. Features leak-proof metal sealing surfaces and nickel plating for enhanced corrosion resistance. The hexagonal center allows standard wrench tightening (13mm wrench size).
- Pneumatic cylinder port extensions
- Air preparation unit plumbing
- Vacuum system manifold connections
- Industrial robot tooling air supply
- Compressed air instrumentation lines
- CNC machine pneumatic circuit branching
Installation note:
Apply thread sealant (LOCTITE 577 recommended) on male threads before assembly.
Avoid overtightening - maximum torque 12N·m. Perform pressure test at 1.5x working pressure after installation.
| Property | Property Value |
|---|---|
| sku | X-ABB0102 |
