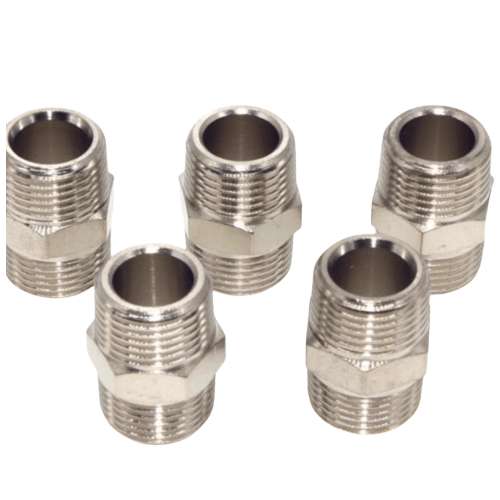

Airtac X-ABB Adapter - Double Male Thread Straight X-ABB0103
AirTAC X-ABB0103 Double Male Thread Straight Fitting Technical Details
- Model: X-ABB0103
- Type: Double male thread straight connector
- Thread specification: 1/8" BSPP (G1/8) × 1/8" BSPP (G1/8)
- Material: Brass with nickel plating (electroless nickel base)
- Temperature range: -20℃ to 80℃ (continuous operation)
- Pressure range: 0-1.0 MPa (0-145 PSI)
- Proof pressure: 1.5 MPa
- Burst pressure: ≥3.0 MPa
- Surface hardness: HV300±50
- Weight: 18.5±0.5g
- Dimensions: 30mm(L) × 8mm(Dia) × 8mm(Dia)
- Seal material: NBR (Nitrile rubber) O-ring
- Torque resistance: ≤3N·m (installation torque)
- Fluid compatibility: Air, inert gases, vacuum
Precision-machined pneumatic connector featuring dual male threads with 360° rotatable port alignment. The electroless nickel coating provides superior corrosion resistance exceeding 96hrs salt spray test (ASTM B117). Designed for leak-free connections in high-vibration environments with a self-aligning seat structure.
- Pneumatic cylinder port extensions
- Modular manifold system interconnections
- Vacuum line distribution networks
- Compressed air tool plumbing
- Robotic end-effector air supply routing
Installation protocol:
Apply 2-3 wraps of PTFE tape on male threads (do not over-tighten).
Use backup wrench on hex flats (8mm AF) to prevent tube distortion.
Maximum recommended reconfiguration cycles: 15 times.
| Property | Property Value |
|---|---|
| sku | X-ABB0103 |
