Airtac X-ABB Adapter - Double Male Thread Straight X-ABB0202
$3.37
Regular price
$10.87
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
X-ABB0202
Product type:
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description

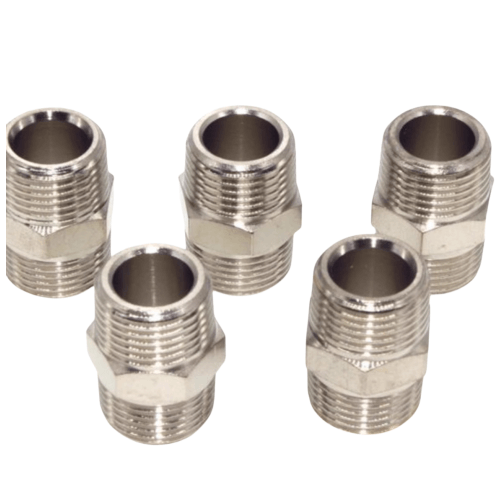

AirTAC X-ABB0202 Double Male Thread Straight Connector Specifications
- Model: X-ABB0202
- Type: Double male thread straight-through fitting
- Thread standard: G1/8" (BSPP parallel threads)
- Material: Lead-free brass CW617N (surface nickel-plated)
- Seal type: Embedded O-ring (NBR 70±5 Shore A)
- Pressure rating: 0.05-1.0 MPa (7-145 PSI)
- Temperature range: -20℃ to 80℃ (continuous use)
- Proof pressure: 1.5 MPa
- Burst pressure: ≥3.0 MPa
- Thread engagement length: 8.5±0.5mm per side
- Weight: 12.8±0.5g
- Dimensions: 20mm(L) × 8mm(Dia) × 8mm(Dia)
- Surface roughness: Ra ≤3.2μm (sealing areas)
- Compliance: RoHS 2.0 compliant
Precision-machined bidirectional connector with full-flow design, featuring dual 24° cone seat interfaces for zero-leak performance. The nickel plating provides corrosion resistance in humid environments. Designed for 100,000+ mating cycles with maintained torque retention.
Typical Applications:
- Pneumatic cylinder port extensions
- Inline pressure gauge installations
- Modular pneumatic system prototyping
- Air preparation unit interconnections
- Robotic end-effector pneumatic routing
Installation protocol:
Hand-tighten plus 1/4 turn with wrench (max 1.2N·m torque).
Apply thread sealant only on male threads before the first engagement.
Avoid overtightening which may distort O-ring groove geometry.
| Property | Property Value |
|---|---|
| sku | X-ABB0202 |
