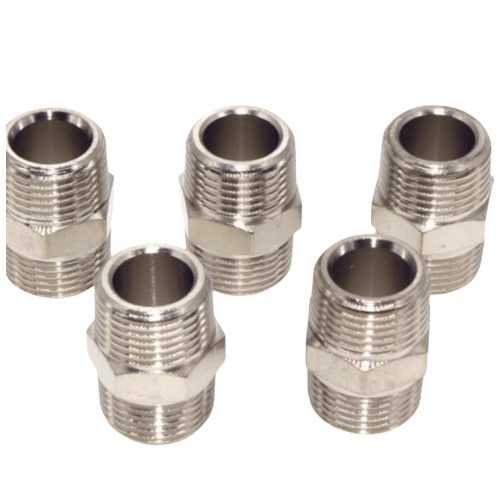

Airtac X-ABB Adapter - Double Male Thread Straight X-ABB0203
AirTAC X-ABB0203 Double Male Threaded Straight Connector Specifications
- Model: X-ABB0203
- Type: Double male threaded straight-through connector
- Thread standard: ISO 228 (BSPP)
- Thread size: G1/8 (Port 1) × G1/4 (Port 2)
- Material: Brass with nickel plating (CuZn39Pb3)
- Seal material: NBR (Nitrile) O-rings
- Pressure rating: 0.05-1.5 MPa (7-217 PSI)
- Temperature range: -20℃ to 80℃ (continuous use)
- Peak temperature resistance: 120℃ (intermittent)
- Weight: 28g ±1g
- Dimensions: 32mm(L) × 16mm(W) × 16mm(H)
- Flow coefficient (Cv): 0.45
- Surface treatment: Electroless nickel plating (5-8μm)
- Certifications: RoHS compliant, REACH SVHC-free
- Installation torque: 1.2-1.5 N·m (recommended)
A bidirectional pneumatic fitting with precision-machined parallel threads, designed for leak-free connections in high-vibration environments. Features corrosion-resistant nickel plating and dual O-ring seals for pressure retention. Compatible with air, inert gases, and vacuum systems (not for hydraulic fluids).
- Modular pneumatic circuit extensions
- Sensor mounting brackets in automation lines
- Tool-free maintenance access points
- Vacuum pick-and-place systems
- Compressed air instrumentation lines
- Robotic end-effector plumbing
Installation protocol:
Apply thread sealant only on male threads (not on O-ring grooves).
Hand-tighten plus 1/4 turn with wrench. Perform pressure test at
1.25× system pressure after installation.
| Property | Property Value |
|---|---|
| sku | X-ABB0203 |
