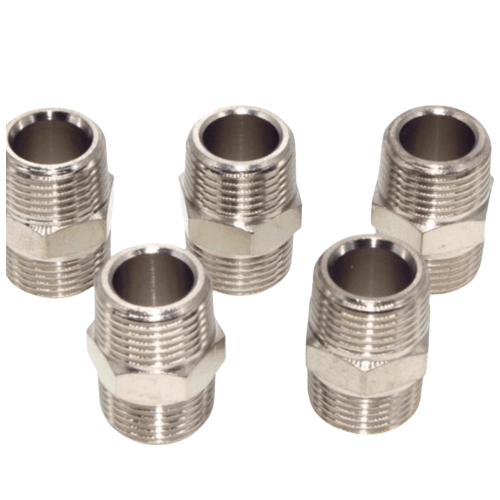

Airtac X-ABB Adapter - Double Male Thread Straight X-ABB0204
AirTAC X-ABB0204 Double Male Thread Straight Fitting Technical Details
- Model: X-ABB0204
- Type: Double external thread straight connector
- Thread standard: Rc1/8 (ISO 228-1 compliant)
- Material: Brass with nickel plating / Stainless steel 304 (optional)
- Max working pressure: 1.5 MPa (217 psi)
- Temperature range: -20℃ to 100℃ (brass) / -20℃ to 200℃ (stainless steel)
- Surface roughness: Ra ≤3.2μm
- Seal material: NBR (standard) / FKM (fluorocarbon optional)
- Proof pressure: 2.25 MPa
- Burst pressure: ≥3 MPa
- Weight: 18g ±0.5g (brass) / 23g ±0.5g (stainless)
- Dimensions: 35mm(L) × 12.5mm(W) × 12.5mm(H)
- Thread engagement depth: 8mm per side
- Flow coefficient (Cv): 0.18
Precision-machined straight connector featuring dual Rc1/8 external threads with leak-proof design. The hexagonal center allows secure wrench tightening (14mm AF). Internal smooth bore minimizes pressure drop, while the nickel-plated brass version provides corrosion resistance for humid environments. Stainless steel variant recommended for chemical exposure or high-temperature applications.
- Inline pneumatic circuit connections between valves and actuators
- Hydraulic test bench manifold assemblies
- Compressed air dryer piping systems
- Coolant line junctions in CNC machinery
- Vacuum system component interconnections
Installation guidelines:
Apply 2-3 wraps of PTFE tape on male threads (clockwise winding direction).
Torque specification: 15-18 N·m for brass, 20-25 N·m for stainless steel.
Avoid cross-threading by hand-starting both ends before final tightening.
| Property | Property Value |
|---|---|
| sku | X-ABB0204 |
