Airtac X-ABB Adapter - Double Male Thread Straight X-ABB0404
$5.08
Regular price
$12.58
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
X-ABB0404
Product type:
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description

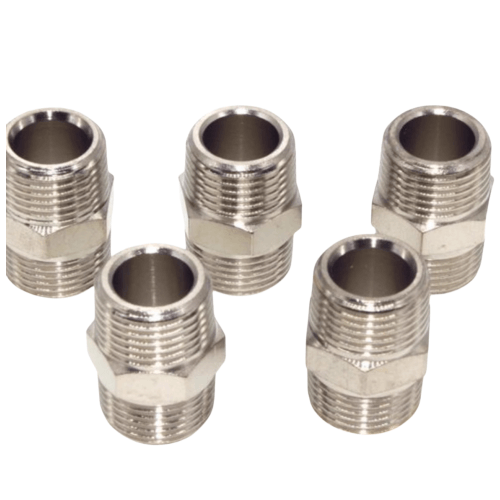

AirTAC X-ABB0404 Double Male Thread Straight Fitting Technical Details
- Model: X-ABB0404
- Type: Double male threaded straight connector
- Thread specification: 1/4" BSPP (G1/4) at both ends
- Material: Brass body with nickel plating
- Max working pressure: 1.5 MPa (217 psi)
- Temperature range: -5℃ to 100℃ (23℉ to 212℉)
- Seal material: NBR (Nitrile) O-rings
- Pressure test: 2.25 MPa sustained for 3 mins
- Surface hardness: HV0.3 ≥420
- Weight: 48g ±2g
- Dimensions: 25mm(L) × 15mm(W) × 15mm(H)
- Flow coefficient (Cv): 0.65
- Certification: RoHS compliant
Precision-machined pneumatic connector featuring corrosion-resistant nickel plating and dual sealing points. The symmetrical male threading enables direct inline connections between female ports in tight spaces. Optimized internal bore (φ4mm) minimizes pressure drop across the fitting.
Common Applications:
- Inline extension of pneumatic circuits in automation equipment
- Sensor mounting brackets requiring rigid connections
- Pressure gauge manifolds in hydraulic test benches
- Tool changer interfaces on CNC machinery
- Compressed air distribution in semiconductor fab tools
Installation guidance:
Apply 2-3 wraps of PTFE tape on threads (clockwise winding direction).
Tighten with 12-15 N·m torque using backup wrench to prevent tubing twist.
Not recommended for continuous rotation applications.
Compatibility:
Works with Φ4mm/Φ6mm OD tubing. For pulsating systems,
use with cushion sleeve (AS-4C). Avoid using in glycol-containing
fluid systems.
| Property | Property Value |
|---|---|
| sku | X-ABB0404 |
