Airtac X-ABZ Connector - Hex Head Plug X-ABZ01
AirTAC X-ABZ01 Hex Plug Specifications
- Model: X-ABZ01
- Type: External hexagon plug for pneumatic ports
- Material: Brass with nickel plating
- Thread specification: M5×0.8 (standard metric fine thread)
- Hex size: 8mm AF (across flats)
- Torque rating: 1.2-1.5 Nm (recommended installation torque)
- Seal material: NBR rubber O-ring
- Temperature range: -20℃ to 80℃
- Pressure range: 0.05-1.5 MPa
- Surface treatment: Electroless nickel plating (5-8μm thickness)
- Weight: 15g ±0.5g
- Dimensions: 25mm(Length) × 8mm(Diameter) × 10mm(Hex size)

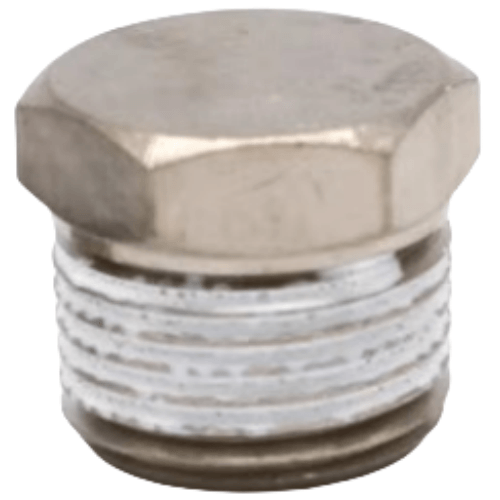

Precision-machined sealing plug with integrated O-ring groove, designed for permanent or temporary port closure in pneumatic systems. Features corrosion-resistant nickel coating and dual sealing mechanism (thread engagement + radial compression). Compatible with ISO 1179-2 standard ports.
- Blocking unused ports in manifold assemblies
- Pressure test point isolation in air preparation units
- Permanent sealing of redundant ports in cylinder base mounts
- Temporary system closure during maintenance in automation lines
Installation protocol:
Apply thread sealant to male threads (optional). Hand-tighten until O-ring contacts surface,
then torque to 1.3N·m using calibrated wrench. Replace O-ring every 5 installations.
- AirTAC MPA/MA series manifolds
- ISO 15407-1 compliant pneumatic valves
- Standard M5 port equipment with 8.5mm wrench flats
