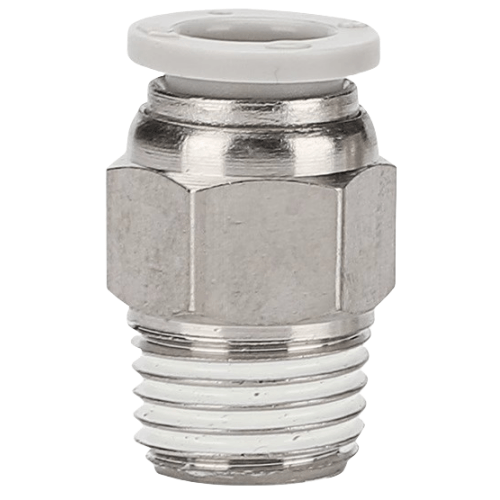

Airtac X-APC Threaded Straight Connector X-APC1001
$3.53
Regular price
$11.03
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
X-APC1001
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
AirTAC X-APC1001 Threaded Straight Fitting Technical Details
- Model: X-APC1001
- Type: Threaded straight-through connector (male to male)
- Thread standard: Metric (M5×0.8)
- Material: Brass with nickel plating (base), NBR seals
- Pressure range: 0-1.0 MPa (145 psi)
- Temperature range: -20°C to 80°C (-4°F to 176°F)
- Weight: ~15g (0.53 oz)
- Dimensions: 22mm(L) × 22mm(W) × 14mm(H)
- Surface roughness: Ra ≤1.6μm
- Proof pressure: 1.5 MPa (217 psi)
- Burst pressure: ≥3.0 MPa (435 psi)
- Thread engagement: Full 360° sealing with 2.5-turn installation
Precision-machined pneumatic connector featuring corrosion-resistant nickel plating and bubble-tight sealing. The hexagonal body design allows 12-point wrench access for confined space installations. Compatible with ISO 6149-1 and JIS B8374 standards.
Ideal for:
- Pneumatic cylinder port extensions
- Modular valve manifold interconnections
- Sensor mounting interfaces in automation lines
- Robotic arm tooling air supply lines
- Packaging machine pneumatic circuit distribution
Installation protocol:
Apply thread sealant exclusively to male threads (Type A/B PTFE tape recommended).
Torque to 1.2-1.5 N·m using calibrated tools. Prevent overtightening to maintain
NBR seal integrity and prevent deformation.
Verified compatibility:
- Direct replacement for SMC KM-Series connectors
- Optimal performance with Loctite 5452/Permatex 80019 sealants
- Certified for ISO 8573-1 Class 3 compressed air systems
| Property | Property Value |
|---|---|
| sku | X-APC1001 |
