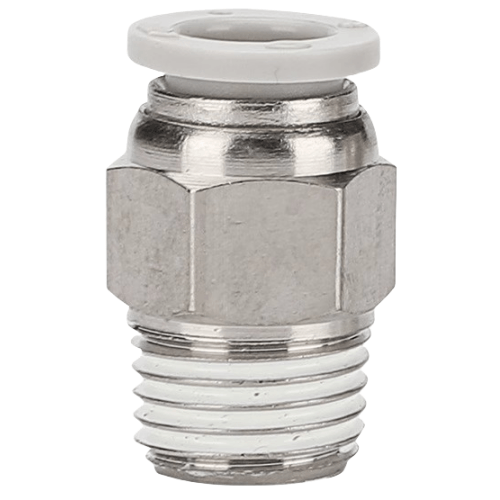

Airtac X-APC Threaded Straight Connector X-APC1002
$3.63
Regular price
$11.13
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
X-APC1002
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
AirTAC X-APC1002 Threaded Straight Connector Technical Details
- Model: X-APC1002
- Type: Metric threaded straight-through connector
- Port size: M5×0.8 female thread (both ends)
- Thread standard: ISO 6149-1 compliant
- Material: Nickel-plated brass body
- Max working pressure: 1.5 MPa (217 psi)
- Temperature range: -20℃ to 80℃ (-4°F to 176°F)
- Weight: 28g ±1g
- Dimensions: 30mm(L) × 12mm(Dia) × 12mm(Flow Path)
- Seal material: NBR O-ring (replaceable)
- Surface treatment: Electroless nickel plating (8-12μm)
- Pressure drop: ≤0.02 MPa @ 0.7 MPa input
- Compatibility: Air, inert gases, non-flammable fluids
- Certification: RoHS compliant
Precision-machined straight connector featuring dual O-ring seals and corrosion-resistant nickel plating. The compact hexagonal body design allows tool-free installation in confined spaces while maintaining 360° rotatable connection. Compatible with standard push-to-connect fittings.
Typical Applications:
- Pneumatic cylinder port extensions
- Modular assembly in FRL (Filter-Regulator-Lubricator) units
- Sensor mounting brackets in automation lines
- Vacuum system plumbing connections
- Medical gas line distribution
Installation note:
Apply thread sealant only on male threads (not required for O-ring sealed connections).
Tightening torque should not exceed 1.2N·m to prevent O-ring deformation.
Maximum angular misalignment tolerance: ±3°.
| Property | Property Value |
|---|---|
| sku | X-APC1002 |
