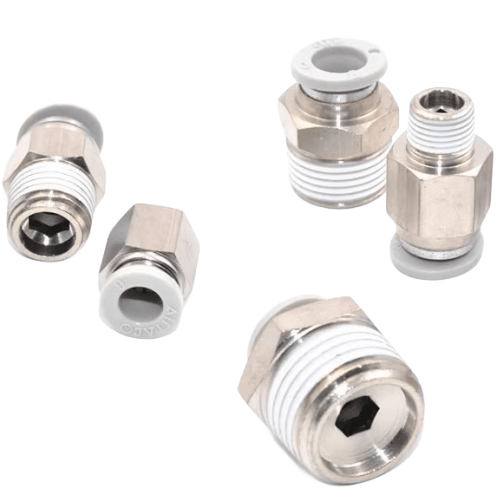

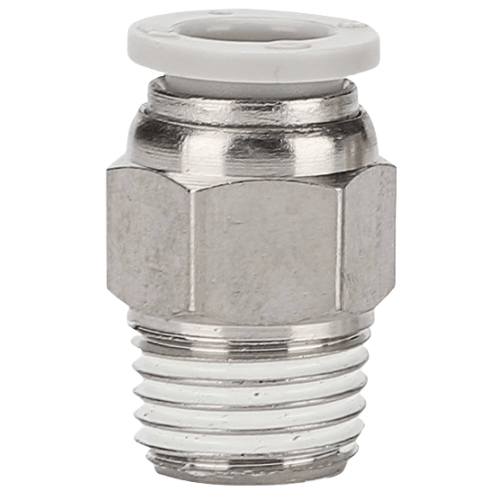

Airtac X-APC Threaded Straight Connector X-APC1003
AirTAC X-APC1003 Threaded Straight Fitting Technical Details
- Model: X-APC1003 (Threaded Straight Connector)
- Thread type: BSPP (G thread) / NPT optional
- Port size: 1/8" (M5×0.8 thread available)
- Material: Nickel-plated brass body
- Seal material: HNBR O-ring (high nitrile)
- Max working pressure: 1.5 MPa (217 psi)
- Temperature range: -20℃ to 120℃
- Surface hardness: HV0.3 ≥550 (plated layer)
- Weight: 18.5g ±0.5g
- Dimensions: 21.5mm (L) × 12mm (W) × 12mm (H)
- Thread engagement depth: 8.5mm ±0.3mm
- Flow coefficient (Cv): 0.12
- Certification: RoHS compliant
Precision-machined straight-through pneumatic connector featuring triple-layer nickel plating for corrosion resistance in humid environments. The tapered thread design with integrated sealing surface ensures leak-free connections without additional sealants. Internal flow path optimized for minimal pressure drop (ΔP ≤0.02MPa @1MPa).
- Pneumatic cylinder port extensions
- Modular manifold block interconnections
- Vacuum system tubing junctions
- Coolant line adapters in CNC machines
- Sensor mounting interfaces
Mounting protocol:
Apply 0.5-0.8Nm torque during installation. For NPT versions,
use PTFE tape on male threads only. Avoid overtightening -
maximum 1.2 full rotations after hand-tight.
- PU/Nylon tubing (4-6mm OD)
- ISO 1179-1 compliant components
- Anti-vibration threaded sleeves
| Property | Property Value |
|---|---|
| sku | X-APC1003 |
