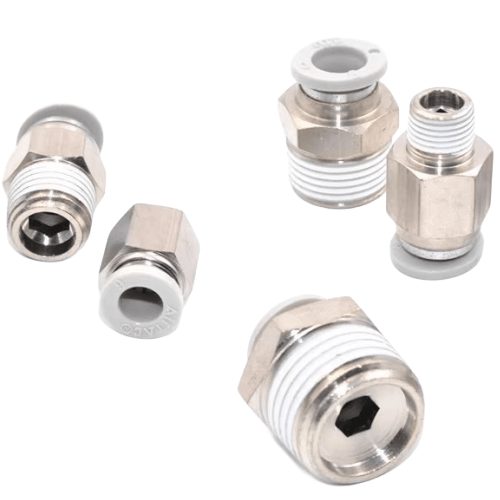

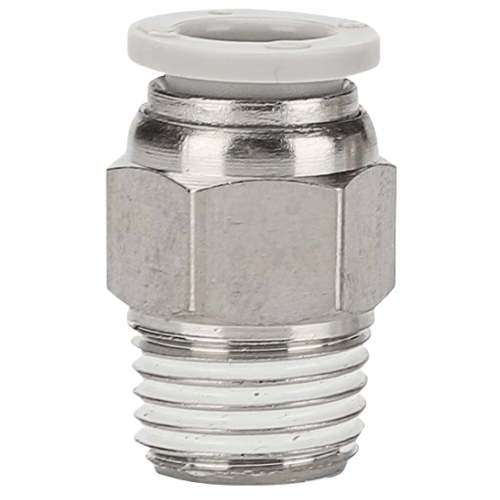

Airtac X-APC Threaded Straight Connector X-APC10M12
AirTAC X-APC10M12 Threaded Straight Connector Technical Details
- Model: X-APC10M12
- Type: Metric straight-through pneumatic connector
- Thread specification: M12×1.0 male thread (both ends)
- Material: Nickel-plated brass body
- Operating pressure: 0-1.0 MPa (145 psi)
- Temperature range: -20℃ to 80℃ (-4°F to 176°F)
- Seal material: HNBR (Hydrogenated Nitrile) with PTFE backup ring
- Surface treatment: Electro-less nickel plating (5-8μm)
- Proof pressure: 1.5 MPa (217 psi)
- Vibration resistance: 10-55Hz, 1.5mm double amplitude
- Weight: 28±2 grams
- Dimensions: 32mm(L) × 16mm(W) × 16mm(H)
- Flow coefficient (Cv): 0.15
- Leakage rate: ≤3×10⁻³ Pa·m³/s (helium test)
Precision-engineered straight connector with dual-stage sealing system, featuring a primary HNBR O-ring and secondary PTFE anti-extrusion ring. The hexagon body design allows 360° tool access in confined spaces. Compatible with ISO 1179-2 and DIN 3859 standards, with anti-vibration thread locking features.
- Modular pneumatic manifolds in assembly robots
- High-cycle pneumatic gripper installations
- CNC machine tool pneumatic distribution blocks
- Food processing equipment (FDA-compliant seal options available)
- Semiconductor cleanroom pneumatic systems
Installation protocol:
Apply 2.5-3 wraps of PTFE tape on male threads (clockwise winding).
Final tightening torque should not exceed 12 N·m. For vertical downward
port orientation, use supporting bracket (X-BR10 accessory recommended).
