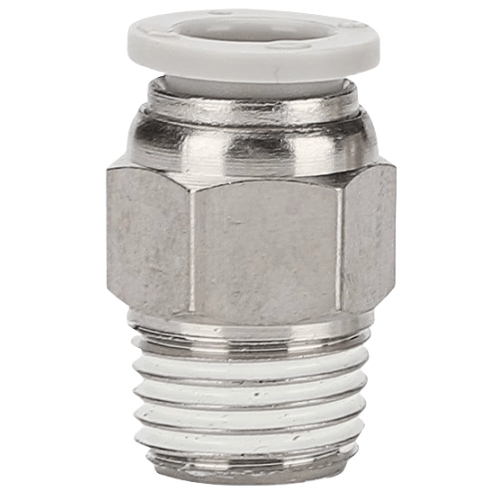

Airtac X-APC Threaded Straight Connector X-APC10M12A
$3.63
Regular price
$11.13
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
X-APC10M12A
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
AirTAC X-APC10M12A Threaded Straight Fitting Detailed Specifications
- Model: X-APC10M12A
- Series: X-APC Compact Series
- Thread Type: Metric Parallel Thread (BSPP compatible)
- Port Size: M12×1.5 (Dual-end identical)
- Material: Stainless Steel 303 + CRCA Electroplated Body
- Seal Material: HNBR O-Ring (-20℃ to 150℃)
- Pressure Range: 0.05-1.0 MPa (1.5 MPa burst pressure)
- Flow Rate: 250 NL/min @0.5 MPa
- Weight: 38±2 grams
- Dimensions: 24mm (L) × 17mm (W) × 17mm (H)
- Surface Treatment: Zinc-nickel alloy plating (8-12μm)
- Vibration Resistance: 10-55Hz, 1.5mm amplitude
- IP Rating: IP40 (non-submerged environments)
High-density forged fitting with dual sealing layers, featuring a unique anti-vibration thread design that maintains airtight integrity under mechanical stress. The hexagonal base allows 12mm wrench operation with torque up to 18N·m. Compatible with ISO 1179-2 and DIN 3852 standards.
Primary Applications:
- Pneumatic valve manifold interconnections
- Robotic arm pneumatic circuit extensions
- CNC machine tool air line distribution
- Compressed air sampling ports
- Sensor mounting interfaces in AGV systems
Installation protocol:
Apply 1.5-2 wraps of PTFE tape clockwise on male threads.
Tighten until 1.5-2 threads remain visible post-installation.
Avoid over-torquing to prevent seat deformation.
| Property | Property Value |
|---|---|
| sku | X-APC10M12A |
