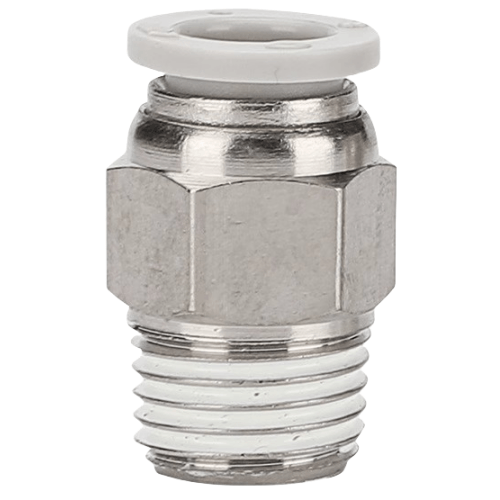

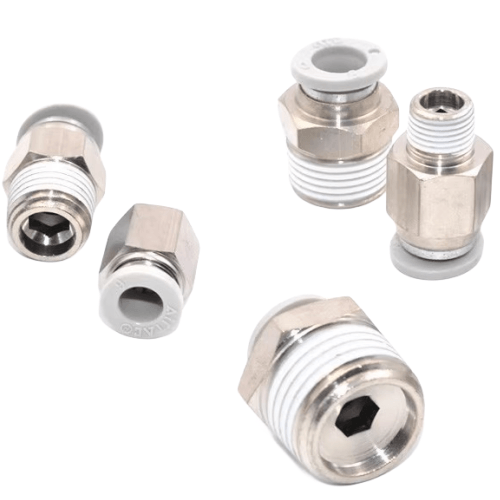

Airtac X-APC Threaded Straight Connector X-APC10M16
AirTAC X-APC10M16 Threaded Straight Fitting Technical Details
- Model: X-APC10M16
- Type: Metric threaded straight connector (male-to-male)
- Thread specification: M16×1.5 dual male threads (both ends)
- Material: Nickel-plated brass (C3604)
- Surface hardness: ≥HV200
- Pressure rating: 0.05–1.5 MPa
- Temperature range: -20℃ to 80℃ (continuous operation)
- Proof pressure: 2.25 MPa
- Burst pressure: ≥3 MPa
- Weight: 32±2g
- Dimensions: 30mm(L) × 16mm(OD) × 16mm(thread length)
- Surface treatment: Electroless nickel plating (5-8μm)
- Compliance: RoHS 2.0, REACH SVHC
Precision-machined pneumatic connector featuring corrosion-resistant nickel plating and full-thread engagement design. The hexagonal center allows standard wrench tightening (24mm AF). Includes integrated O-ring groove for positive sealing with compatible tubing (ID 10mm). Rated for 500,000+ pressure cycles.
- Inline pneumatic circuit extensions in robotic arms
- Sensor mounting interfaces on automated assembly lines
- Vacuum system plumbing for CNC machinery
- Compressed air distribution in packaging systems
- Modular connections in semiconductor fab equipment
Installation protocol:
Apply 12-15 N·m torque during assembly using flank contact wrench.
Use PTFE tape or LOCTITE 577 on threads for high-vibration environments.
Maximum angular misalignment: ±3° between connected components.
| Property | Property Value |
|---|---|
| sku | X-APC10M16 |
